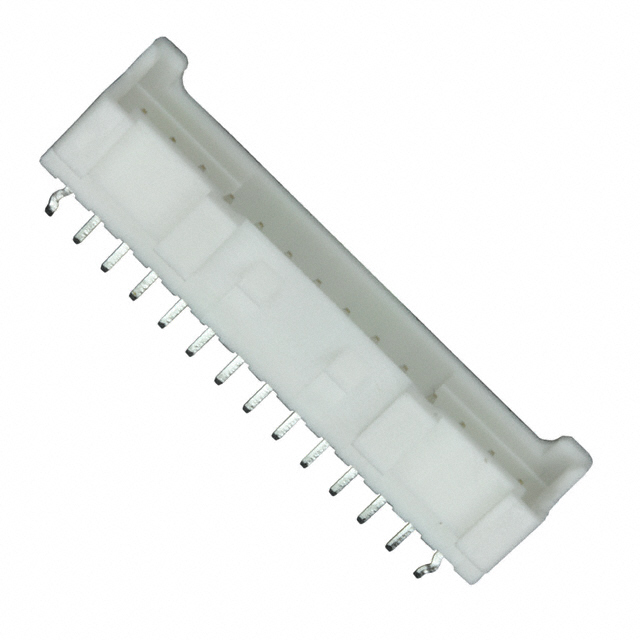

B14B-PASK-1

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B14B-PASK-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	14.7 mm, 9.9 mm, 14.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length [x]	8.1 mm
Overall Contact Length [x]	0.319 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Number of Positions	Mounting Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Style	Shrouding	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mated Stacking Heights	Fastening Type	Contact Finish - Post	Termination	Contact Length - Post	Contact Length - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Material	Voltage Rating	Material Flammability Rating	Insulation Material	Features
JST Sales America Inc. B14B-PASK	All	3 A	Natural	14	Through Hole	1	3.2 mm	0.126 "	Board to Cable/Wire	Shrouded - 4 Wall	Square	8.1 mm	0.319 in	-25 °C	85 °C	Male Pin	9.9 mm 14.7 mm 14.9 mm	Locking Ramp	Tin	Kinked Pin Solder	0.118 in	3 mm	Header	0.079 in	2 mm	0.303 in	7.7 mm	Copper Alloy	250 VDC	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled
JST Sales America Inc. B14B-PASK-1	All	3 A	Natural	14	Through Hole	1	3.2 mm	0.126 "	Board to Cable/Wire	Shrouded - 4 Wall	Square	8.1 mm	0.319 in	-25 °C	85 °C	Male Pin	9.9 mm 14.7 mm 14.9 mm	Locking Ramp	Tin	Kinked Pin Solder	0.118 in	3 mm	Header	0.079 in	2 mm	0.303 in	7.7 mm	Copper Alloy	250 VDC	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 14 position 0.079" (2.00mm)

Technical documentation and resources
