C0603A.18.10

Active

Prysmian Group

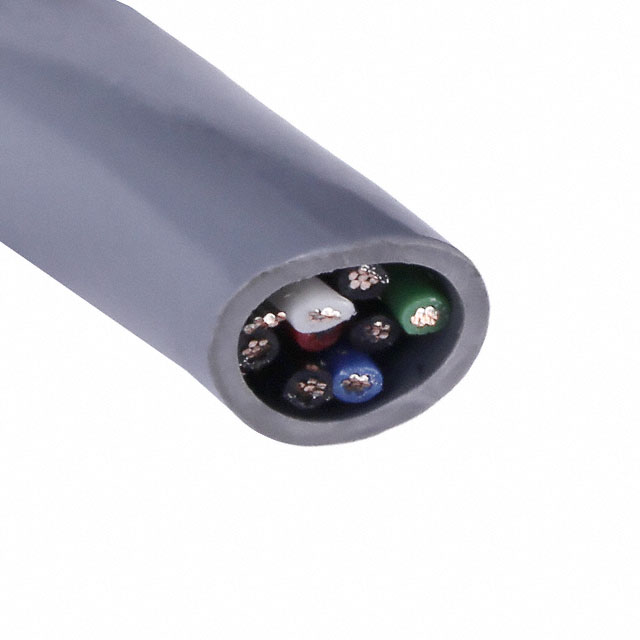

MULTI-PAIR 8COND 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 8COND 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C0603A.18.10

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Usage	Shield Material	Ratings	Conductor Material	Voltage	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Shield Type	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Jacket (Insulation) Material
Prysmian Group C0603A.18.10	Computer	Flexfoil®	ASTM B-33	Copper Annealed Tinned	300 V	500 '	152.4 m	24 AWG	6.22 mm	0.245 in	100 %	-20 C	80 C	Gray	Poly-Vinyl Chloride (PVC)	Foil	Multi-Pair	32 AWG	7	8	Drain Wire	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.01

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 500.0' (152.4m)
