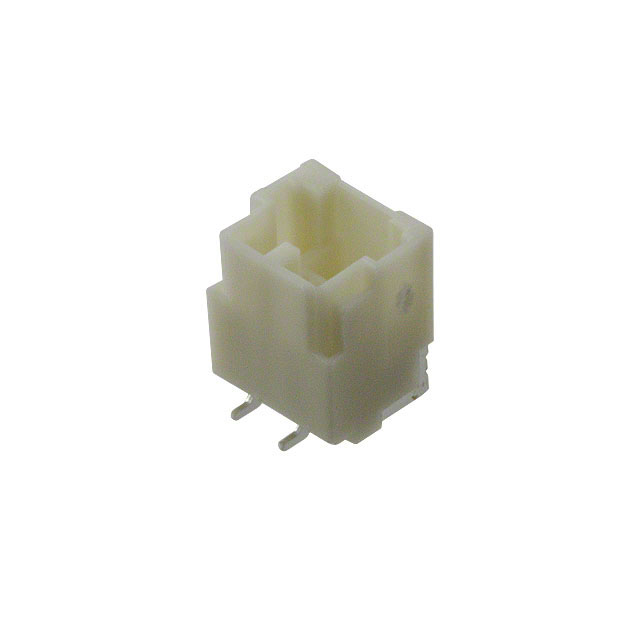

BM02B-NSHSS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM02B-NSHSS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Pick and Place Cap, Solder Retention
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	7.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Shrouding	Contact Material	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Number of Positions Loaded	Mounting Type	Style	Number of Positions	Connector Type	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Mated Stacking Heights	Contact Finish - Post	Number of Rows
JST Sales America Inc. BM02B-NSHSS-TBT	Shrouded - 4 Wall	Copper Alloy	UL94 V-0	50 V	-25 °C	85 °C	Solder	Pick and Place Cap Solder Retention	All	Surface Mount	Board to Cable/Wire	2	Header	Male Pin	Natural	0.039 in	1 mm	Latch Holder	6 mm	0.236 in	Nylon Polyamide (PA)	7.8 mm	Tin	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 2 position 0.039" (1.00mm)
