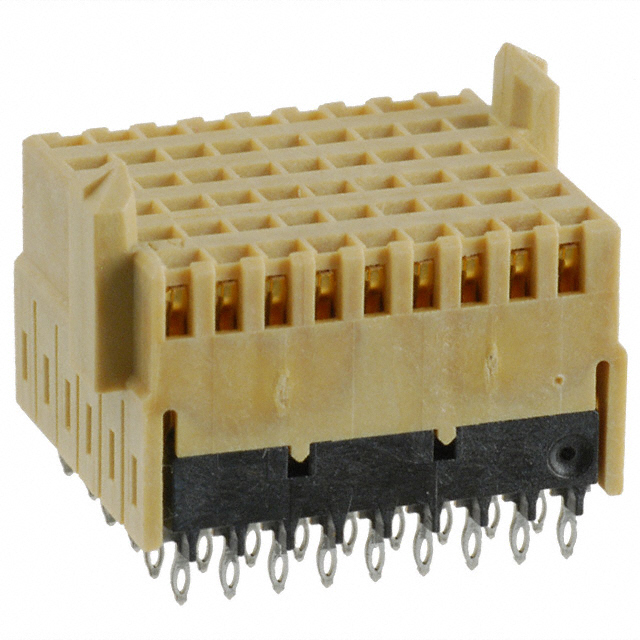

10043546-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10043546-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	18
Contact Layout, Typical [custom]	18
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Mounting Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Pitch [x]	Pitch [x]	Contact Finish	Color	Number of Columns	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Connector Style	Termination	Number of Positions	Connector Usage	Connector Type
Amphenol ICC (FCI) 10043546-101LF	Through Hole	18	18	0.055 in	1.4 mm	Gold	Natural	6	0.76 Ám	30 Áin	All	9	UL94 V-0	High Speed	Press-Fit	54	Daughtercard	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54 Connector Receptacle, Female Sockets Through Hole Natural High Speed
