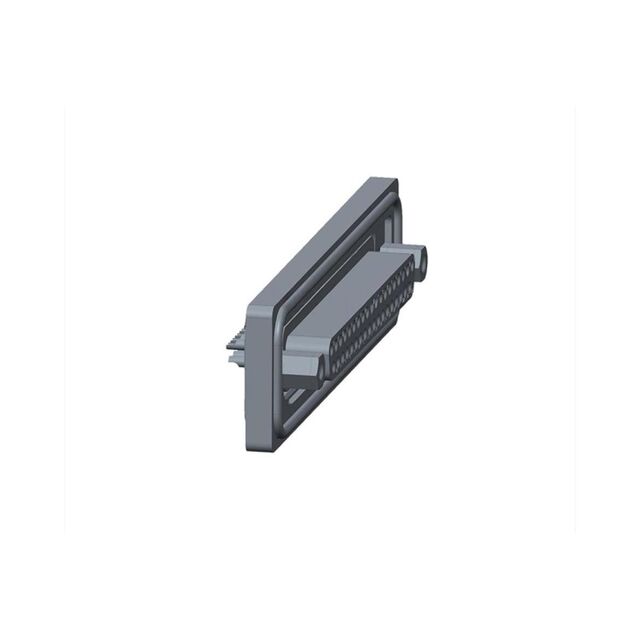

SDB-37PFFS-SL7001

Active

Amphenol LTW

CONN D-SUB RCPT 37POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB RCPT 37POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-37PFFS-SL7001

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Number of Positions	Contact Finish	Features	Ingress Protection	Dielectric Material	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Shell Size, Connector Layout	Contact Type	Connector Style	Number of Rows	Connector Type	Current Rating (Amps)	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Color
Amphenol LTW SDB-37PFFS-SL7001	37	Gold	Shielded	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	22 AWG	26 AWG	Copper Alloy	4 (DC C)	Signal	D-Sub	2	Receptacle Female Sockets	5 A	Nickel Plated Steel	-40 °C	105 ░C	Female Screwlock (4-40) Mating Side	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
