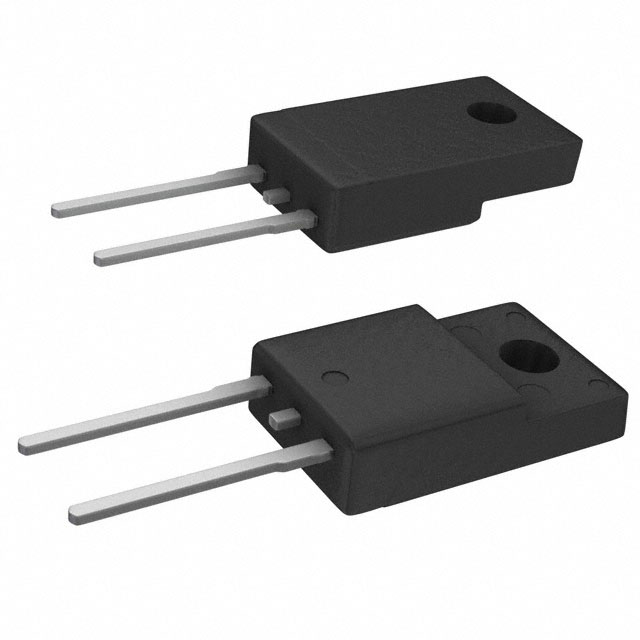

UF5JFC C0G

Unknown

Taiwan Semiconductor Corporation

DIODE GEN PURP 600V 5A ITO220AC

Search across all available documentation for this part.

Unknown

Taiwan Semiconductor Corporation

DIODE GEN PURP 600V 5A ITO220AC

Technical Specifications

Parameters and characteristics for this part

Specification	UF5JFC C0G

Capacitance @ Vr, F	30 pF
Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	30 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2 Full Pack
Reverse Recovery Time (trr)	25 ns
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.8 V

Part	Current - Reverse Leakage @ Vr	Package / Case	Supplier Device Package	Technology	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Mounting Type
Taiwan Semiconductor Corporation UF5JFC C0G	30 µA	TO-220-2 Full Pack	ITO-220AC	Standard	5 A	200 mA 500 ns	600 V	30 pF	150 °C	-55 °C	2.8 V	25 ns	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 5A Through Hole ITO-220AC
