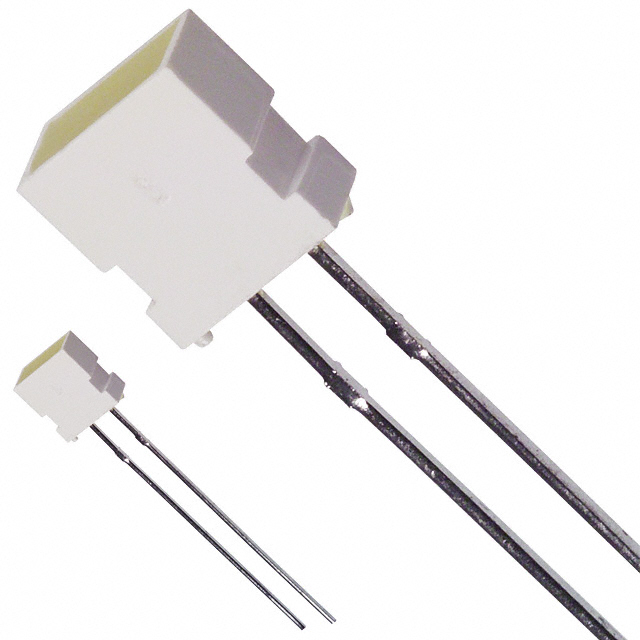

SSL-LX4673YD-LA20

Active

Lumex Opto/Components Inc.

LED YELLOW DIFF RECT 4MMX7MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED YELLOW DIFF RECT 4MMX7MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Supplier Device Package [x]	Supplier Device Package [y]	Lens Transparency	Current - Test	Color	Configuration	Wavelength - Peak	Mounting Type	Package / Case	Millicandela Rating	Lens Color	Height (Max) [Max] [z]	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX4673SYD-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	2 V	4 mm	7 mm	Diffused	20 mA	Yellow	Standard	590 nm	Through Hole	Radial	100 mcd	Yellow	6.8 mm
Lumex Opto/Components Inc. SSL-LX4673ID-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	2 V	4 mm	7 mm	Diffused	20 mA	Red	Standard	635 nm	Through Hole	Radial	12 mcd	Red	6.8 mm
Lumex Opto/Components Inc. SSL-LX4673IGW-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	2 V 2.2 V	4 mm	7 mm	Diffused	20 mA 20 mA	Green Red	Bidirectional	565 nm 635 nm	Through Hole	Radial		White	6.8 mm	10mcd Green 10mcd Red
Lumex Opto/Components Inc. SSL-LX4673SRD-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	1.7 V	4 mm	7 mm	Diffused	20 mA	Red	Standard	660 nm	Through Hole	Radial	60 mcd	Red	6.8 mm
Lumex Opto/Components Inc. SSL-LX4673GD-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	2.2 V	4 mm	7 mm	Diffused	20 mA	Green	Standard	565 nm	Through Hole	Radial	6 mcd	Green	6.8 mm
Lumex Opto/Components Inc. SSL-LX4673YD-LA20	Rectangle with Flat Top	100 °	6.15 mm	3.65 mm	2.1 V	4 mm	7 mm	Diffused	20 mA	Yellow	Standard	585 nm	Through Hole	Radial	6 mcd	Yellow	6.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow LED Indication - Discrete 2.1V Radial
