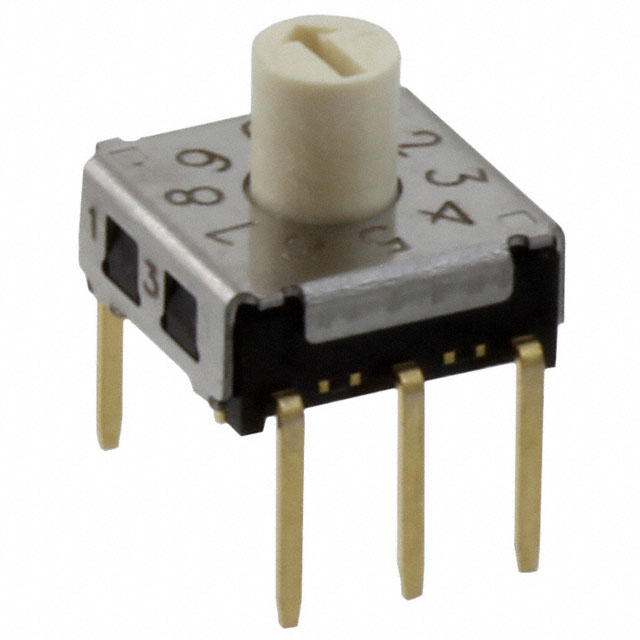

A6K-102RS
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6K-102RS
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6K-102RS |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Circuit | BCD |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 20000 Steps |
| Height Above Board | 6 mm |
| Height Above Board | 0.236 in |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.12 | |
| 10 | $ 4.89 | |||
| 63 | $ 4.14 | |||
| 126 | $ 4.10 | |||
Description
General part information
A6K-102 Series
Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 25mA 24VDC
