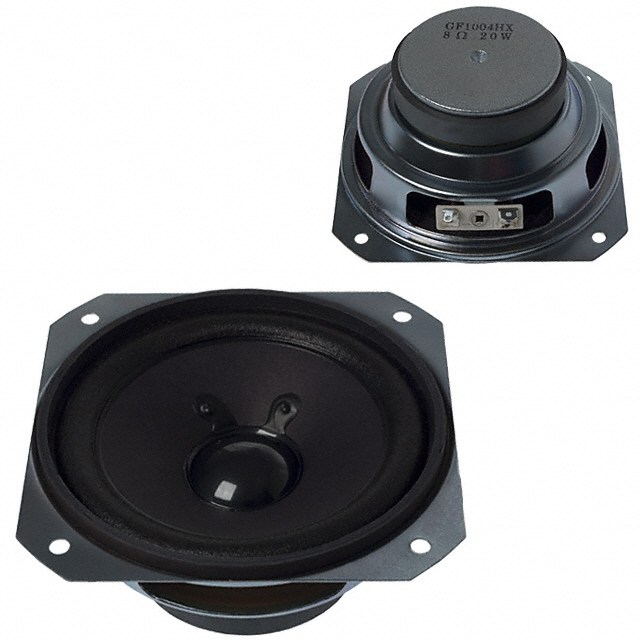

GF1004H
ActiveCUI Devices
SPEAKER 8OHM 20W TOP PORT 90DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GF1004H
ActiveCUI Devices
SPEAKER 8OHM 20W TOP PORT 90DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GF1004H |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 100 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) [Max] | 51 mm |
| Height - Seated (Max) [Max] [z] | 2.008 in |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Max [Max] | 40 W |
| Power - Rated | 20 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [x] | 4.016 " |
| Size / Dimension [y] | 102 mm |
| Size / Dimension [y] | 4.016 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.08 | |
| 10 | $ 7.92 | |||
Description
General part information
GF1004 Series
8 Ohms General Purpose Speaker 20 W 100 Hz ~ 10 kHz Top Round, Square Frame
