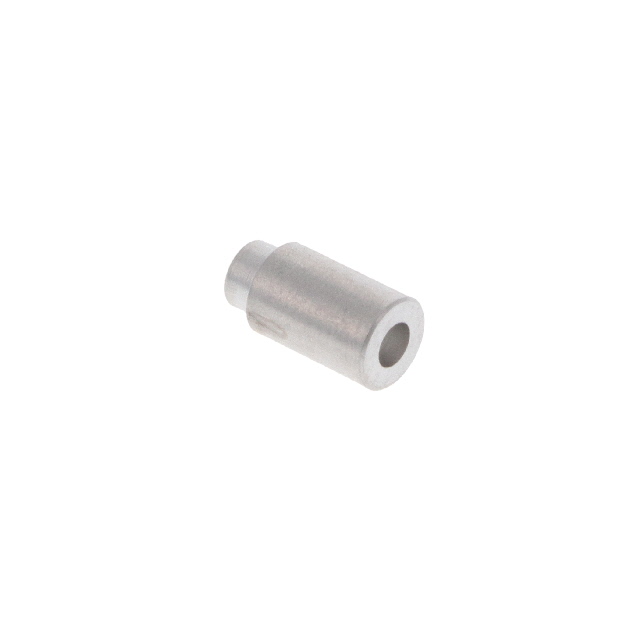

1535-B-4-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 3/8 X .115 ID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1535-B-4-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 3/8 X .115 ID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1535-B-4-AL-7 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Color | Clear |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.48 in |
| Length - Overall [x] | 12.19 mm |
| Material | Aluminum |
| Plating | Iridite |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 5 | $ 1.19 | |||
| 10 | $ 1.07 | |||
| 25 | $ 0.95 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.81 | |||
Description
General part information
1535-B Series
Round Spacer Unthreaded Aluminum 0.375" (9.53mm) 3/8" Clear
