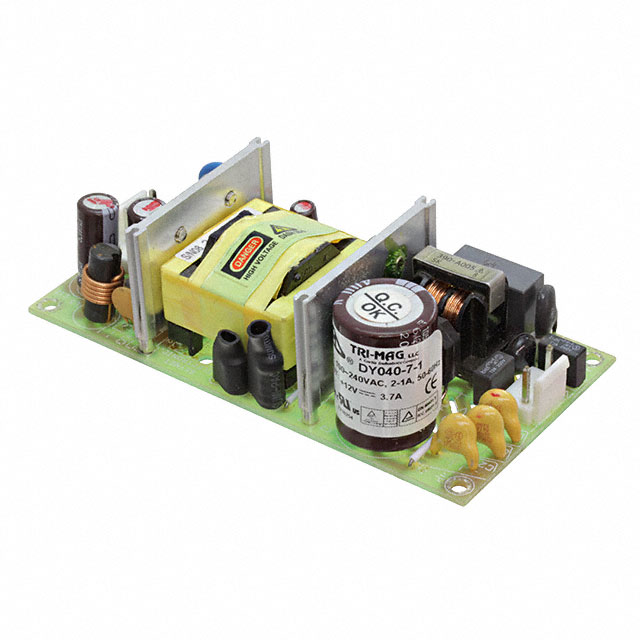

DY040-7-1

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 45W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 45W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Current - Output 2	Applications	Features	Current - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Current - Output 3	Voltage - Output 3
Tri-Mag, LLC DY040-7	Chassis Mount	Open Frame	500 mA	ITE (Commercial)	Universal Input	3.3 A	2	50.8 mm	2 in	101.6 mm	1.2 "	28 mm	4 in	5 V	12 V	90 VAC	264 VAC	70 °C
Tri-Mag, LLC DY040-2	Chassis Mount	Open Frame	2 A	ITE (Commercial)	Universal Input	3 A	3	50.8 mm	2 in	101.6 mm	1.2 "	28 mm	4 in	12 V	5 V	90 VAC	264 VAC	70 °C	300 mA	-12 V
Tri-Mag, LLC DY040-6	Chassis Mount	Open Frame		ITE (Commercial)	Universal Input	7 A	1	50.8 mm	2 in	101.6 mm	1.2 "	28 mm	4 in		5 V	90 VAC	264 VAC	70 °C
Tri-Mag, LLC DY040-7-1	Chassis Mount	Open Frame		ITE (Commercial)	Universal Input	3.3 A	1	50.8 mm	2 in	101.6 mm	1.2 "	28 mm	4 in		12 V	90 VAC	264 VAC	70 °C
Tri-Mag, LLC DY040-9-1	Chassis Mount	Open Frame		ITE (Commercial)	Universal Input	1.9 A	1	50.8 mm	2 in	101.6 mm	1.2 "	28 mm	4 in		24 V	90 VAC	264 VAC	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.04

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
