Q-3B0480005002M

Active

Amphenol Custom Cable

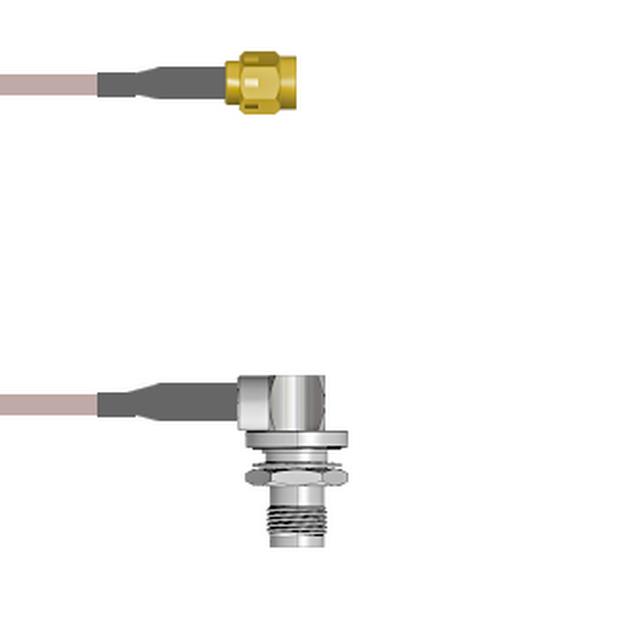

COAX CBL SMA TO TNC 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B0480005002M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Frequency - Max [Max]	Connector Impedance	1st Contact Gender	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Color	Overall Impedance	Style	Cable Impedance	Features	2nd Connector Mounting Feature	Cable Type	Length	Length	Length	2nd Connector	2nd Connector Mounting Type
Amphenol Custom Cable Q-3B0480005003M	3 GHz	50 Ohms	Male	Female	SMA Plug	Free Hanging (In-Line)	Copper	50 Ohms	SMA to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	RG-316	3 m	118.1 in	9.8 '	TNC Jack Right Angle	Panel Mount
Amphenol Custom Cable Q-3B0480005002M	3 GHz	50 Ohms	Male	Female	SMA Plug	Free Hanging (In-Line)	Copper	50 Ohms	SMA to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	RG-316	2 m	78.7 in	6.6 ft	TNC Jack Right Angle	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 78.7" (2.0m) 6.6'
