892-038-559-207

Active

EDAC Inc.

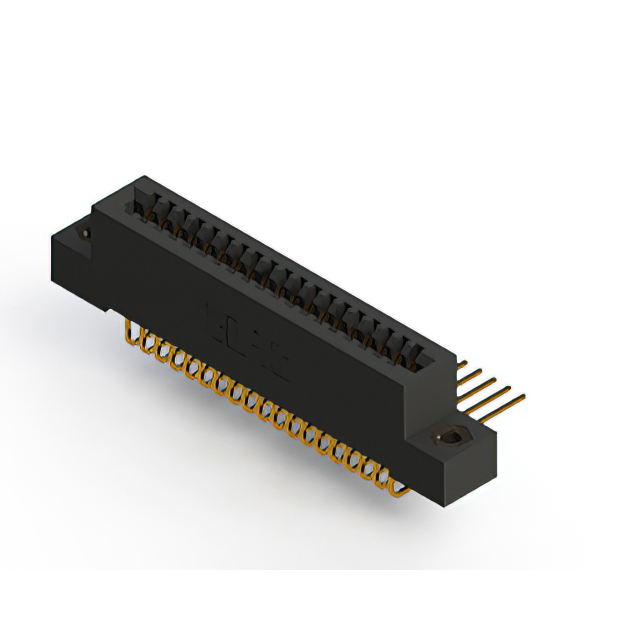

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-038-559-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-038-559-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-038 Series

...

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Number of Rows	Number of Positions	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination Rows	Mounting Type	Termination	Contact Finish	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Card Type	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 892-038-523-112	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	1	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	1	Through Hole	Solder	Gold	Black	2.54 mm	0.1 in	38	Non Specified - Single Edge	Single	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 892-038-544-208	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Through Hole	Wire Wrap	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-038-544-104	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	1	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	1	Through Hole	Wire Wrap	Gold	Black	2.54 mm	0.1 in	38	Non Specified - Single Edge	Single	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-038-559-207	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Through Hole Right Angle	Solder	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-038-555-208	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Board Edge Straddle Mount	Solder	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual		4-40 Flush Mount Threaded Insert Top Opening		Card Extender
EDAC Inc. 892-038-558-104	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	1	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	1	Through Hole Right Angle	Solder	Gold	Black	2.54 mm	0.1 in	38	Non Specified - Single Edge	Single	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-038-520-201	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Through Hole	Solder	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual
EDAC Inc. 892-038-500-203	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Through Hole	Solder Eyelet(s)	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 892-038-520-103	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	1	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	1	Through Hole	Solder	Gold	Black	2.54 mm	0.1 in	38	Non Specified - Single Edge	Single	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 892-038-544-212	Copper Alloy	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	2	38	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	2	Through Hole	Wire Wrap	Gold	Black	2.54 mm	0.1 in	19	Non Specified - Dual Edge	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 86.25

Description

General part information

892-038 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
