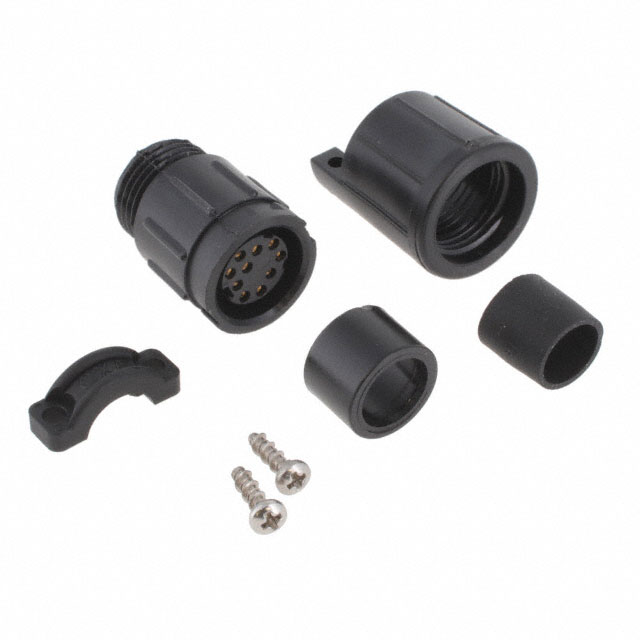

W5282-10SG-535

Active

Conxall/Switchcraft

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Features	Voltage Rating	Number of Positions	Backshell Material, Plating	Mounting Type	Color	Contact Finish - Mating	Shielding	Insert Material	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Ingress Protection	Orientation	Fastening Type	Connector Type	Cable Opening [Max] [diameter]
Conxall/Switchcraft W5282-10PG-328	Brass	Backshell	600 V	10	Thermoplastic	Free Hanging (In-Line)	Black	Gold	Unshielded	Thermoplastic	Plastic	7.37 mm	7.11 mm	0.29 in	0.28 in	IP67 - Dust Tight Waterproof	E	Bayonet Lock	Male Pins Receptacle
Conxall/Switchcraft W5282-10SG-328	Brass	Backshell	600 V	10	Thermoplastic	Free Hanging (In-Line)	Black	Gold	Unshielded	Thermoplastic	Plastic	7.37 mm	7.11 mm	0.29 in	0.28 in	IP67 - Dust Tight Waterproof	E	Bayonet Lock	Receptacle Female Sockets
Conxall/Switchcraft W5282-10SG-528	Brass	Backshell Cable Clamp	600 V	10	Thermoplastic	Free Hanging (In-Line)	Black	Gold	Unshielded	Thermoplastic	Plastic	7.37 mm	7.11 mm	0.29 in	0.28 in	IP67 - Dust Tight Waterproof	E	Bayonet Lock	Receptacle Female Sockets
Conxall/Switchcraft W5282-10SG-535	Brass	Backshell Cable Clamp	600 V	10	Thermoplastic	Free Hanging (In-Line)	Black	Gold	Unshielded	Thermoplastic	Plastic		8.89 mm	0.4 in	0.35 in	IP67 - Dust Tight Waterproof	E	Bayonet Lock	Receptacle Female Sockets	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
