IPRF-HB-P01P0N01-AT-R - IPRF-HB-P01P0N01-AT-R

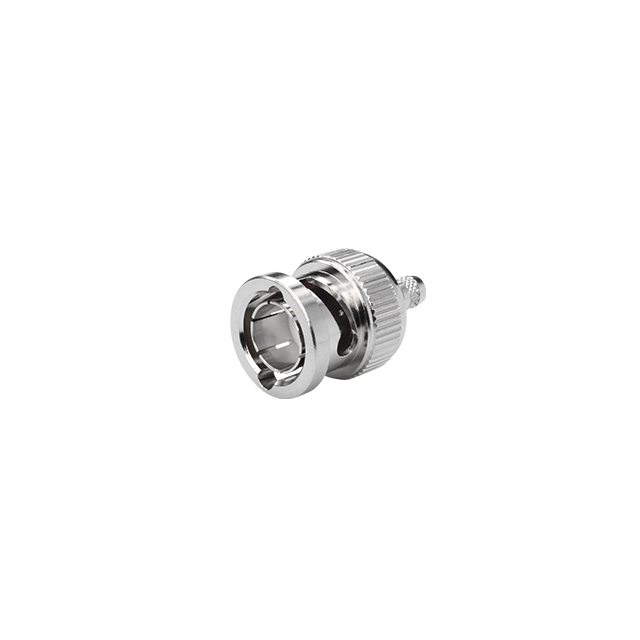

IPRF-HB-P01P0N01-AT-R

Active
Sure-Seal Legacy

12G-SDI BNC CRIMP PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
IPRF-HB-P01P0N01-AT-R - IPRF-HB-P01P0N01-AT-R

IPRF-HB-P01P0N01-AT-R

Active
Sure-Seal Legacy

12G-SDI BNC CRIMP PLUG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationIPRF-HB-P01P0N01-AT-R
Body FinishNickel
Body MaterialBrass
Cable GroupBelden 1855ENH
Center Contact MaterialBrass
Center Contact PlatingNickel
Connector StyleBNC
Connector TypeMale Pin, Plug
Contact TerminationCrimp
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeBayonet Lock
Frequency - Max [Max]12 GHz
Housing ColorSilver
Impedance75 Ohms
Ingress ProtectionIP68 - Dust Tight, Waterproof
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationCrimp
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 1.69

Description

General part information

IPRF Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
