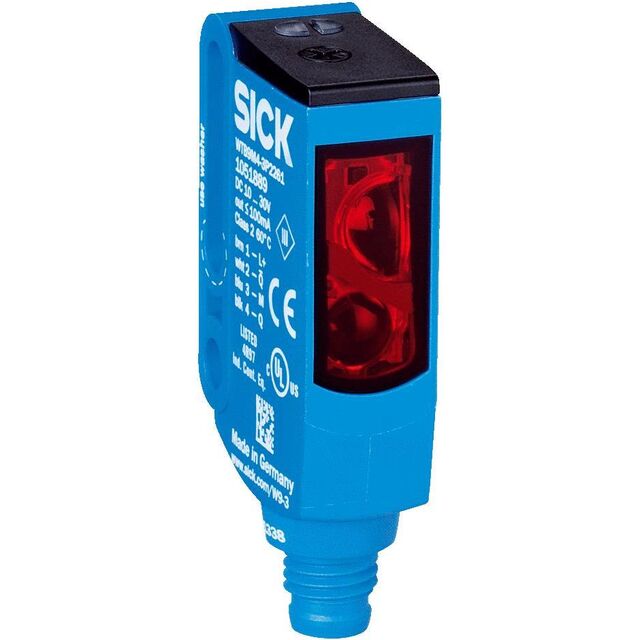

1051885

Active

SICK, Inc.

SENSOR PROXIMITY 350MM NPN

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 350MM NPN

Technical Specifications

Parameters and characteristics for this part

Specification	1051885

Adjustment Type	Adjustable, 5-Turn Potentiometer
Connection Method	Connector, M8
Light Source	RED (650nm)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN
Response Time	333 µs
Sensing Distance [Max]	350 mm
Sensing Distance [Max]	13.78 "
Sensing Distance [Min]	20 mm
Sensing Distance [Min]	0.787 "
Sensing Method	Proximity
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Response Time	Output Configuration	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Adjustment Type	Light Source	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Cable Length	Cable Length
SICK, Inc. 1051891	-40 °C	60 °C	Proximity	333 µs	PNP	Connector M12	30 VDC	10 VDC	IP66 IP67 IP69K	Adjustable 5-Turn Potentiometer	RED (650nm)	20 mm	350 mm	13.78 "	0.787 "
SICK, Inc. WTB9M4-3P2211	-40 °C	60 °C	Proximity	500 µs	PNP	Connector M8	30 VDC	10 VDC	IP66 IP67 IP69K	Adjustable 5-Turn Potentiometer	Infrared	20 mm	500 mm	19.685 in	0.787 "
SICK, Inc. 1054430	-40 °C	60 °C	Proximity	500 µs	PNP	Cable with Connector	30 VDC	10 VDC	IP66 IP67 IP69K	Adjustable 5-Turn Potentiometer	Infrared	20 mm	500 mm	19.685 in	0.787 "	4.724 in	120 mm
SICK, Inc. WTB9M4-3P2261	-40 °C	60 °C	Proximity	333 µs	PNP	Connector M8	30 VDC	10 VDC		Adjustable 5-Turn Potentiometer	RED (650nm)	20 mm	350 mm	13.78 "	0.787 "
SICK, Inc. 1051890	-40 °C	60 °C	Proximity	500 µs	PNP	Connector M12	30 VDC	10 VDC		Adjustable 5-Turn Potentiometer	Infrared	20 mm	500 mm	19.685 in	0.787 "
SICK, Inc. 1051885	-40 °C	60 °C	Proximity	333 µs	NPN	Connector M8	30 VDC	10 VDC		Adjustable 5-Turn Potentiometer	RED (650nm)	20 mm	350 mm	13.78 "	0.787 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 294.70

General part information

Proximity Optical Sensor 0.787" ~ 13.780" (20mm ~ 350mm) NPN
