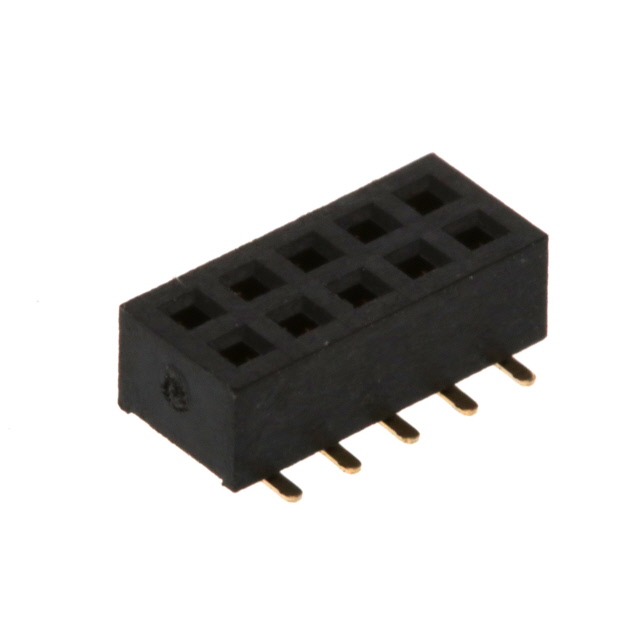

FM20B05VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Technical Specifications

Parameters and characteristics for this part

Specification	FM20B05VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Part	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Number of Rows	Fastening Type	Contact Type	Contact Shape	Insulation Material	Mounting Type	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Ingress Protection
METZ CONNECT USA Inc. FM20B05VBDN	0.084 in	2.14 mm	-40 °C	105 ░C	10	Copper Alloy	Gold	0.05 in	1.27 mm	Black	Receptacle	2	Push-Pull	Female Socket	Square	Polyamide (PA6) Nylon 6	Surface Mount	Solder	All	Flash	0.05 in	1.27 mm	IP00

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
