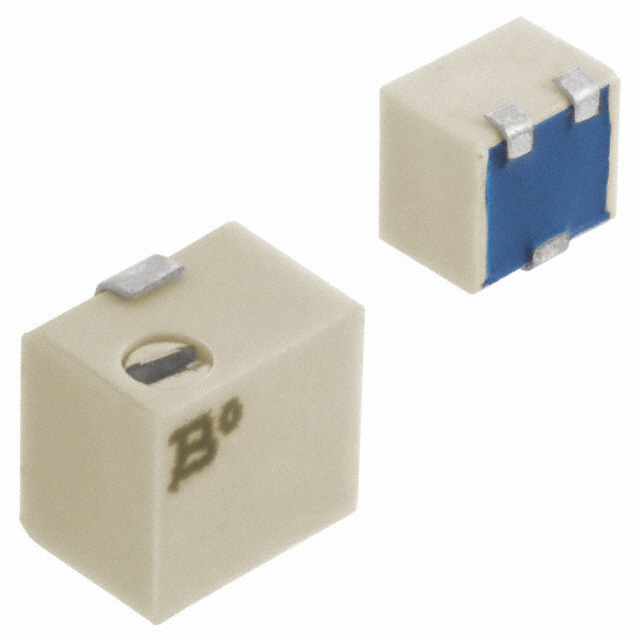

3214J-1-103G

Active

Bourns Inc.

TRIMMER 10KOHM 0.25W J LEAD SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 10KOHM 0.25W J LEAD SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Tolerance	Temperature Coefficient	Resistance	Resistive Material	Termination Style	Power (Watts)	Power (Watts)	Mounting Type
Bourns Inc. 3214J-2-103E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	10000 Ohms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-2-503E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	50 kOhms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-2-102E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	1000 Ohms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-504E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C		Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-104G	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	100 kOhms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-104E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	100 kOhms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-500E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	50 Ohms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-103G	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	10000 Ohms	Cermet	J Lead	0.25 W	250 mW	Surface Mount
Bourns Inc. 3214J-1-503E	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	5	10 %	100 ppm/°C	50 kOhms	Cermet	J Lead	0.25 W	250 mW	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 1.67

General part information

10 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 5 Turn Side Adjustment
