SD-70LS

Active

CUI Devices

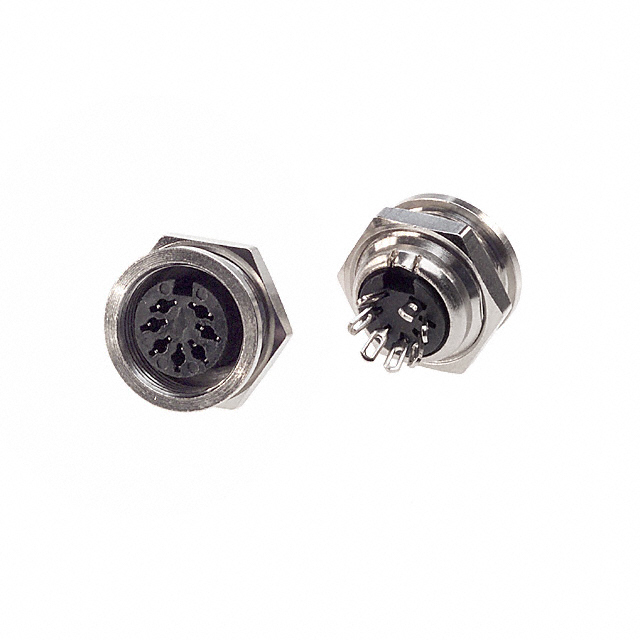

CONN RCPT FMALE DIN 7P SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 7P SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-70LS

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc
Shell Size - Insert	DIN (270 Degree)
Shielding	Shielded
Termination	Solder Eyelet(s)
Voltage Rating	100 VAC

Part	Color	Connector Type	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Orientation	Mounting Type	Features	Current Rating (Amps)	Shielding	Insert Material	Shell Finish	Contact Material	Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Number of Positions	Shell Material	Material Flammability Rating	Mounting Feature	Cable Opening [diameter]	Cable Opening [diameter]
CUI Devices SD-70J	Black	Receptacle Female Sockets	Silver	Push-Pull	DIN (270 Degree)	Keyed	Free Hanging (In-Line)	Strain Relief	2 A	Unshielded	Polycarbonate (PC)	Black Nickel	Brass	Solder	100 VAC	-5 °C	110 °C	Metal	7	Steel
CUI Devices SD-70BV	Silver	Receptacle Female Sockets		Push-Pull	DIN (270 Degree)	Keyed	Through Hole			Shielded		Nickel	Brass	Solder	24 VDC	-20 C	60 °C	Metal	7	Iron Sheet	UL94 V-0
CUI Devices SD-70LS	Silver	Receptacle Female Sockets			DIN (270 Degree)	Keyed			2 A	Shielded	Nylon Polyamide (PA)	Nickel	Brass	Solder Eyelet(s)	100 VAC	-40 °C	85 °C	Metal	7	Zinc	UL94 HB	Bulkhead - Rear Side Nut
CUI Devices SD-70SN	Silver	Receptacle Female Sockets	Silver	Push-Pull	DIN (270 Degree)	Keyed				Shielded	Polybutylene Terephthalate (PBT)	Nickel	Brass	Solder Eyelet(s)	12 V 100 VAC	5 °C	70 °C	Metal	7	Steel	UL94 V-0	Flange
CUI Devices SD-70LP	Silver	Male Pins Plug	Silver		DIN (270 Degree)	Keyed	Free Hanging (In-Line)	Coupling Nut Strain Relief	2 A	Shielded		Nickel	Brass	Solder	100 VAC	-40 °C	85 °C	Metal	7	Zinc Alloy			8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 3.38

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Eyelet(s)
