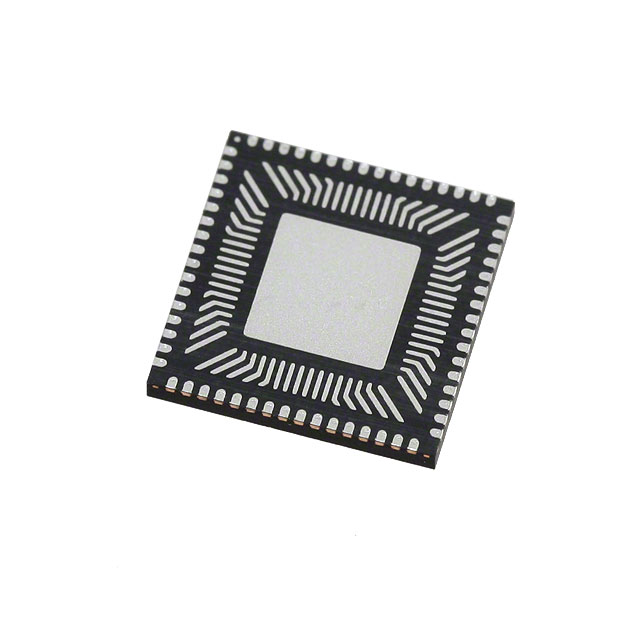

FT4232HQ-TRAY
ActiveFTDI, Future Technology Devices International Ltd
IC USB HS QUAD UART/SYNC 64-QFN
Deep-Dive with AI
Search across all available documentation for this part.
FT4232HQ-TRAY
ActiveFTDI, Future Technology Devices International Ltd
IC USB HS QUAD UART/SYNC 64-QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FT4232HQ-TRAY |
|---|---|
| Current - Supply | 70 mA |
| Function | Bridge, USB to UART |
| Interface | UART |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-VFQFN Exposed Pad |
| Protocol | USB |
| Standards | USB 2.0 |
| Supplier Device Package | 64-QFN (9x9) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
FT4232 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Function | Standards | Supplier Device Package | Protocol | Package / Case | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Embedded | Contents | Type | Supplied Contents | Utilized IC / Part | Primary Attributes | Primary Attributes [Min] | Primary Attributes [Max] | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTDI, Future Technology Devices International Ltd | 85 °C | -40 °C | Bridge USB to UART | USB 2.0 | 64-LQFP (10x10) | USB | 64-LQFP | UART | 3.6 V | 3 V | 70 mA | |||||||||
FTDI, Future Technology Devices International Ltd | 85 °C | -40 °C | Bridge USB to UART | USB 2.0 | 64-LQFP (10x10) | USB | 64-LQFP | UART | 3.6 V | 3 V | 70 mA | |||||||||
FTDI, Future Technology Devices International Ltd | USB 2.0 to UART (RS232) Bridge | Yes ASIC | Board(s) | Interface | Board(s) | FT4232H | High-Speed Security ID Number | 300 bps | 12 Mbaud | |||||||||||
FTDI, Future Technology Devices International Ltd | 85 °C | -40 °C | Bridge FIFO USB to UART | USB 2.0 | 56-VQFN (8x8) | USB | 56-VFQFN Exposed Pad | FIFO | 3.3 V | |||||||||||
FTDI, Future Technology Devices International Ltd | 85 °C | -40 °C | Bridge USB to UART | USB 2.0 | 64-QFN (9x9) | USB | 64-VFQFN Exposed Pad | UART | 3.6 V | 3 V | 70 mA | |||||||||
FTDI, Future Technology Devices International Ltd | 85 °C | -40 °C | Bridge USB to UART | USB 2.0 | 64-QFN (9x9) | USB | 64-VFQFN Exposed Pad | UART | 3.6 V | 3 V | 70 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.35 | |
| 10 | $ 6.25 | |||
| 50 | $ 6.07 | |||
| 100 | $ 5.94 | |||
Description
General part information
FT4232 Series
USB Bridge, USB to UART USB 2.0 UART Interface 64-QFN (9x9)
