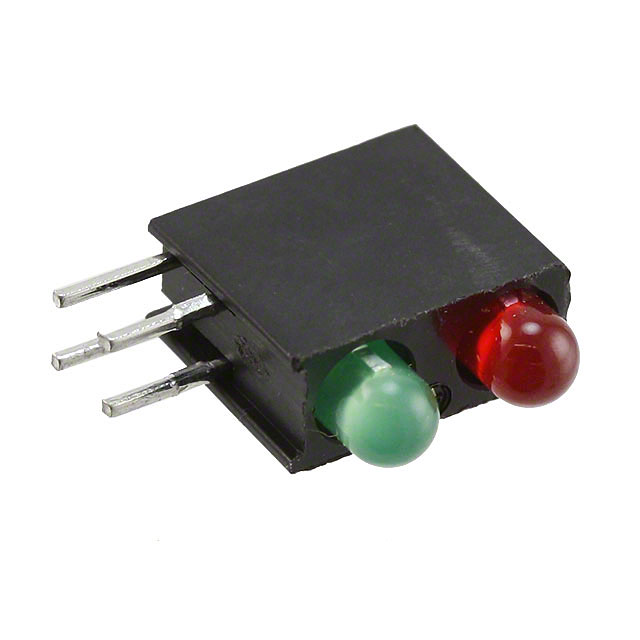

5530312F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Technical Specifications

Parameters and characteristics for this part

Part	Color	Configuration	Viewing Angle	Voltage Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak	Mounting Type	Lens Size	Lens Size	Lens Style	Lens Type	Voltage Rating	Configuration [z]	Configuration [y]
DIALIGHT 5530312400F	Green (x 1) Red (x 1)	2 High	60 °	5V Green 5V Red	19 mcd	29 mcd	565 nm 635 nm	Through Hole Right Angle
DIALIGHT 5530312300F	Green (x 1) Red (x 1)	2 High		5V Green 5V Red	19 mcd	29 mcd	565 nm 635 nm	Through Hole Right Angle	3 mm	T-1	Round with Domed Top
DIALIGHT 5530312004F			60 °				565 nm 635 nm	Through Hole Right Angle	3 mm	T-1	Round with Domed Top	Diffused Tinted	5 V	2	4
DIALIGHT 5530312010F	Green (x 1) Red (x 1)	2 High	60 °				565 nm 635 nm	Through Hole Right Angle	3 mm	T-1	Round with Domed Top	Diffused Tinted	5 V
DIALIGHT 5530312F	Green (x 1) Red (x 1)	2 High		5V Green 5V Red	19 mcd	29 mcd	565 nm 635 nm	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) 5V Green, 5V Red Through Hole, Right Angle
