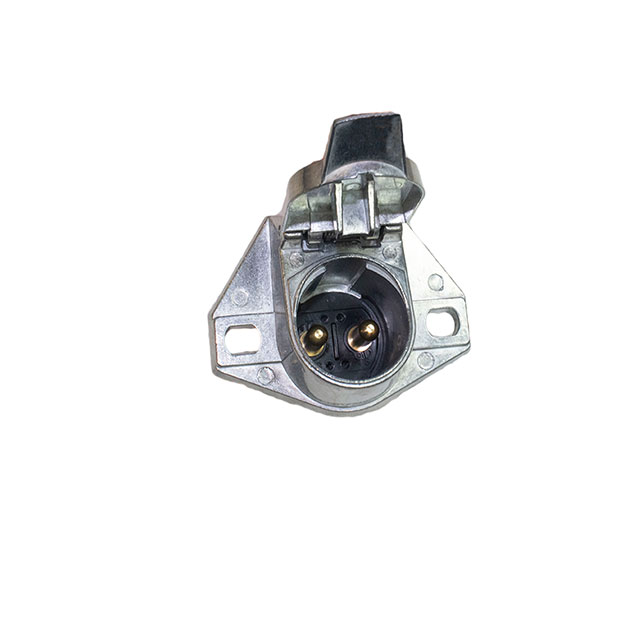

TC2H-SE2-Z

Active

Switch Components

CONN RCPT MALE 2POS SET SCREW

Search across all available documentation for this part.

Active

Switch Components

CONN RCPT MALE 2POS SET SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	TC2H-SE2-Z

Applications	Automotive
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	200 A
Fastening Type	Push-Pull
Features	Cap (Cover)
Insert Material	Polyacrylonitrile Butadiene Styrene (ABS)
Mounting Feature	Flange
Number of Positions	2
Orientation	Keyed
Primary Material	Metal
Shell Material	Zinc
Shielding	Unshielded
Termination	Set Screw

Part	Contact Material	Connector Type	Fastening Type	Current Rating (Amps)	Shielding	Primary Material	Insert Material	Features	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Termination	Color	Orientation	Shell Material	Applications	Mounting Feature
Switch Components TC2H-P3-Z	Brass	Female Sockets Plug	Push-Pull	200 A	Unshielded	Metal	Polyacrylonitrile Butadiene Styrene (ABS)	Cable Clamp Strain Relief	Free Hanging (In-Line)	1 in	25.4 mm	2	Set Screw	Silver	Keyed	Zinc	Automotive
Switch Components TC2H-SE2-Z	Brass	Male Pins Receptacle	Push-Pull	200 A	Unshielded	Metal	Polyacrylonitrile Butadiene Styrene (ABS)	Cap (Cover)				2	Set Screw	Silver	Keyed	Zinc	Automotive	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Set Screw
