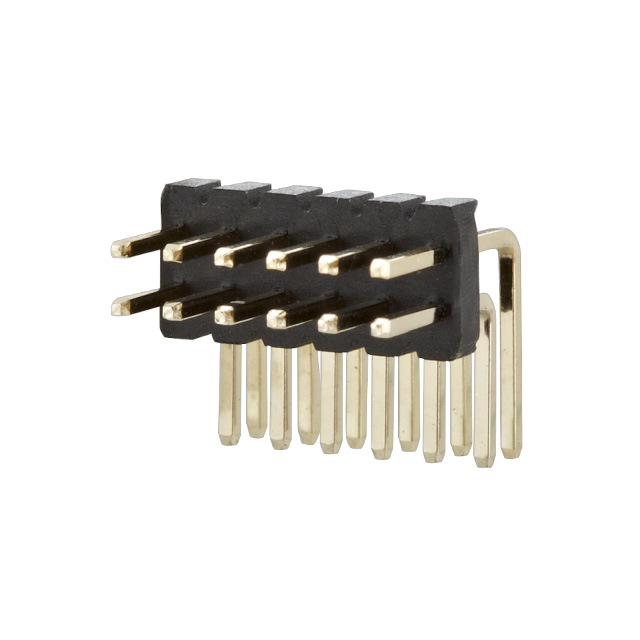

PR20B04HBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PR20B04HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.46 mm
Insulation Height	0.136 in
Insulation Material	Polyethylene
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Fastening Type	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Shrouding	Contact Material	Insulation Material	Number of Rows	Number of Positions Loaded	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Contact Length - Mating	Contact Length - Mating	Termination	Contact Finish - Mating	Mounting Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating
METZ CONNECT USA Inc. PR20B04HBNN	Push-Pull	Flash	Black	0.11 in	2.79 mm	0.05 in	1.27 mm	Unshrouded	Copper Zinc	Polyethylene	1	All	Header	Male Pin	-40 °C	105 ░C	Square	4	3 mm	0.118 in	Solder	Gold	Through Hole Right Angle	1.5 mm	0.059 "
METZ CONNECT USA Inc. PR20B04HBDN	Push-Pull	Flash	Black	0.11 in	2.79 mm	0.05 in	1.27 mm	Unshrouded	Copper Alloy	Polyethylene	2	All	Header	Male Pin	-40 °C	105 ░C	Square	8	3 mm	0.118 in	Solder	Gold	Through Hole Right Angle	3.46 mm	0.136 in	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10000	$ 0.18

General part information

Connector Header Through Hole, Right Angle 8 position 0.050" (1.27mm)
