WR9MA1200LCP-F(R6B)

Active

GlobTek, Inc.

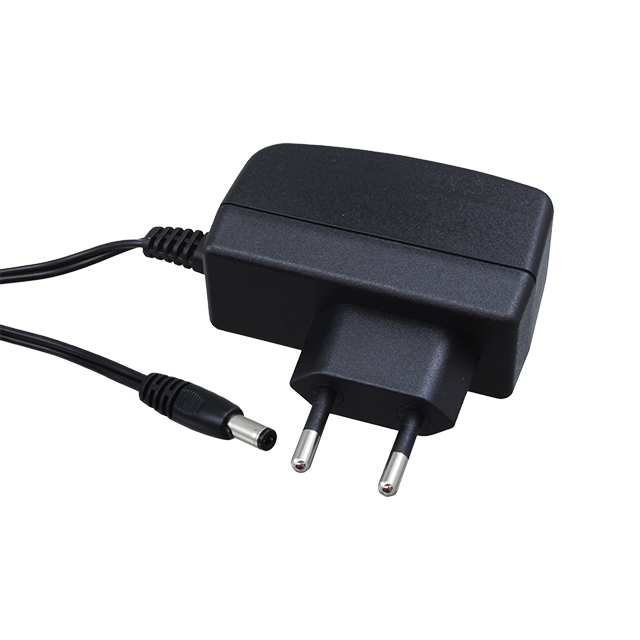

AC/DC WALL MOUNT ADAPTER 5V 6W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9MA1200LCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, LPS, EAC, UKRSepro, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	Europe
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71.2 mm
Size / Dimension [y]	25 mm
Size / Dimension [y]	0.98 in
Size / Dimension [z]	2.6 in
Size / Dimension [z]	66 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Efficiency	Output Connector	Form	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Approval Agency	Input Type	Standard Number	Applications	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Polarization
GlobTek, Inc. WR9MA1200MICB-F(R6B)	Level VI	USB Micro	Wall Mount (Class II)	75 mW	90 VAC	264 VAC	5 V	CEE 7/16	25 mm	0.98 in	2.6 in	2.8 in	66 mm	71.2 mm	6 W	Europe	40 °C	0 °C	1.2 A	CB CE EAC LPS UKRSepro	Fixed Blade	60950-1	ITE (Commercial)	1.5 m	59 in
GlobTek, Inc. WR9MA1200LCP-F(R6B)	Level VI	Barrel Plug	Wall Mount (Class II)	75 mW	90 VAC	264 VAC	5 V	CEE 7/16	25 mm	0.98 in	2.6 in	2.8 in	66 mm	71.2 mm	6 W	Europe	40 °C	0 °C	1.2 A	CB CE EAC LPS UKRSepro	Fixed Blade	60950-1	ITE (Commercial)	1.5 m	59 in	2.5 mm 5.5 mm	11 mm	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
