C4PXG-1418M

Active

CW Industries

DIP CABLE - CDP14G/AE14M/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP14G/AE14M/X

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Color	Connector Type	Length [x]	Length [x]	Shielding	Cable Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Connector	Pitch - Connector	Usage	Pitch - Cable	Pitch - Cable	Length	Length	Length	Number of Positions
CW Industries C4PXG-1618M	Gold	Multiple Ribbon	DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2	10 Áin	0.25 Ám	16	0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm
CW Industries C4PXG-1606M	Gold	Multiple Ribbon	DIP to Cable			Unshielded	IDC	2	10 Áin	0.25 Ám	16	0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '
CW Industries C4PXG-1436G	Gold		DIP to Cable	914.4 mm	3 ft	Unshielded	IDC	2	10 Áin	0.25 Ám		0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm				14
CW Industries C4PXG-1618G	Gold		DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2	10 Áin	0.25 Ám	16	0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm
CW Industries C4PXG-1436M	Gold	Multiple Ribbon	DIP to Cable	914.4 mm	3 ft	Unshielded	IDC	2	10 Áin	0.25 Ám		0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm				14
CW Industries C4PXG-1418M	Gold	Multiple Ribbon	DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2	10 Áin	0.25 Ám		0.1 in	2.54 mm	Board In Socket (0.3")	0.05 "	1.27 mm				14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

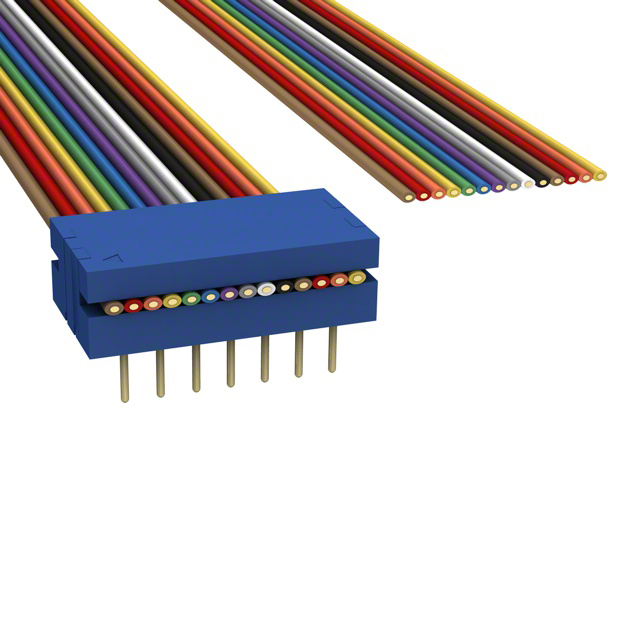

14 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)
