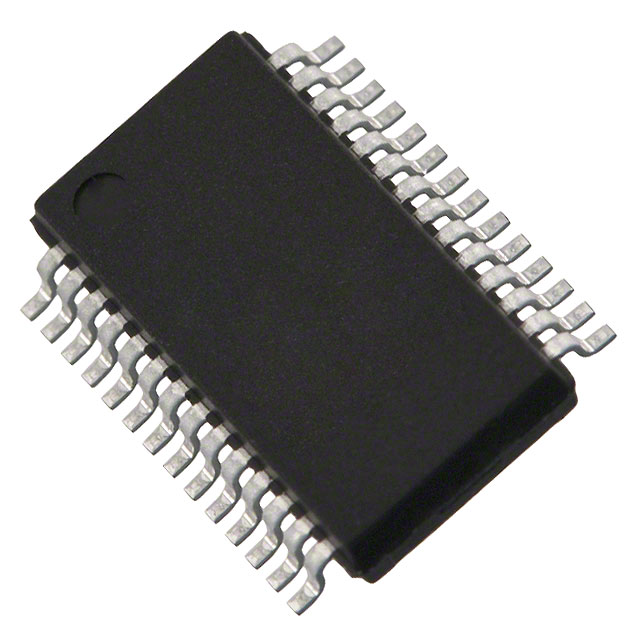

SP211ECA-L/TR
ActiveMaxLinear, Inc.
IC TRANSCEIVER FULL 4/4 28SSOP
Deep-Dive with AI
Search across all available documentation for this part.
SP211ECA-L/TR
ActiveMaxLinear, Inc.
IC TRANSCEIVER FULL 4/4 28SSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP211ECA-L/TR |
|---|---|
| Data Rate | 230 kbps |
| Duplex | Full |
| Mounting Type | Surface Mount |
| Number of Drivers/Receivers [custom] | 5 |
| Number of Drivers/Receivers [custom] | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 28-SSOP |
| Package / Case [custom] | 0.209 in |
| Package / Case [custom] | 5.3 mm |
| Protocol | RS232 |
| Receiver Hysteresis | 500 mV |
| Supplier Device Package | 28-SSOP |
| Type | Transceiver |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.46 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.24 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.95 | |||
| 500 | $ 0.84 | |||
| Digi-Reel® | 1 | $ 1.46 | ||
| 10 | $ 1.30 | |||
| 25 | $ 1.24 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.95 | |||
| 500 | $ 0.84 | |||
| Tape & Reel (TR) | 1500 | $ 0.66 | ||
| 3000 | $ 0.62 | |||
| 7500 | $ 0.59 | |||
| 10500 | $ 0.56 | |||
Description
General part information
SP211 Series
4/5 Transceiver Full RS232 28-SSOP
Documents
Technical documentation and resources
No documents available
