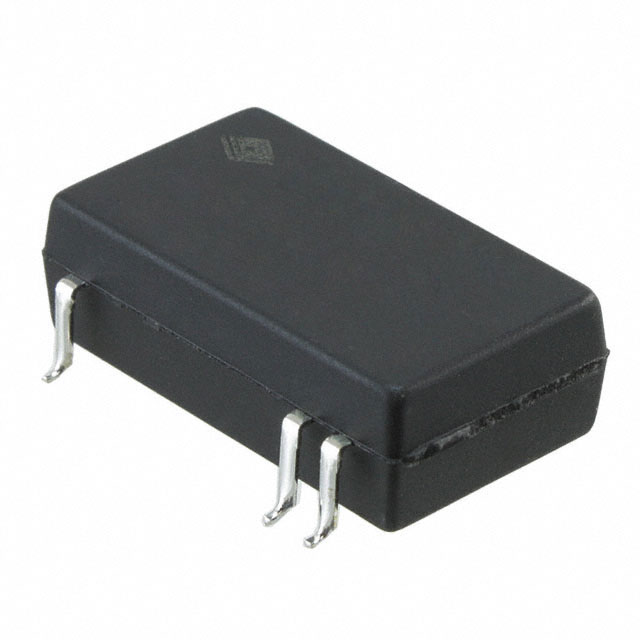

VLD25-350-SMT-TR

Obsolete

CUI Inc.

LED DRIVER CC BUCK 3.3-36V 350MA

Search across all available documentation for this part.

Obsolete

CUI Inc.

LED DRIVER CC BUCK 3.3-36V 350MA

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Output (Max) [Max]	Package / Case	Topology	Voltage - Input (Max) [Max]	Weight	Weight	Dimming	Mounting Type	Approval Agency	Voltage - Input (Max)
CUI Inc. VLD25-300-SMT-TR	1	96 %	0.31 in	8 mm	0.94 in	18.1 mm	23.9 mm	0.71 in	5.5 V	11 W	36 V	3.3 V	Constant Current	85 °C	-40 °C	Remote On/Off SCP	300 mA	16-SMD Gull Wing 6 Leads	Buck	48 V	5.9 g	0.013 lb	Analog PWM	Surface Mount
CUI Inc. VLD25-300-DIP	1	95 %	0.37 in	9.5 mm	0.9 "	10.2 mm	22.9 mm	0.4 in	5.5 V	11 W	36 V	3.3 V	Constant Current	85 °C	-40 °C	Remote On/Off SCP	300 mA	6-DIP Module	Buck		4.08 g	0.009 lb	Analog PWM	Through Hole	CE EN IEC	46 V
CUI Inc. VLD25-700-DIP	1	95 %	0.37 in	9.5 mm	0.9 "	10.2 mm	22.9 mm	0.4 in	5.5 V	25 W	36 V	3.3 V	Constant Current	71 °C	-40 °C	Remote On/Off SCP	700 mA	6-DIP Module	Buck		4.08 g	0.009 lb	Analog PWM	Through Hole	CE EN IEC	46 V
CUI Inc. VLD25-350-SMT-TR	1	96 %	0.31 in	8 mm	0.94 in	18.1 mm	23.9 mm	0.71 in	5.5 V	13 W	36 V	3.3 V	Constant Current	85 °C	-40 °C	Remote On/Off SCP	350 mA	16-SMD Gull Wing 6 Leads	Buck	48 V	5.9 g	0.013 lb	Analog PWM	Surface Mount
CUI Inc. VLD25-350-DIP	1	95 %	0.37 in	9.5 mm	0.9 "	10.2 mm	22.9 mm	0.4 in	5.5 V	13 W	36 V	3.3 V	Constant Current	85 °C	-40 °C	Remote On/Off SCP	350 mA	6-DIP Module	Buck		4.08 g	0.009 lb	Analog PWM	Through Hole	CE EN IEC	46 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

350mA 3.3 ~ 36V Constant Current LED Driver Buck Topology 1 Output
