SDS108-PRW1-F15-SN13-1

Obsolete

Sullins Connector Solutions

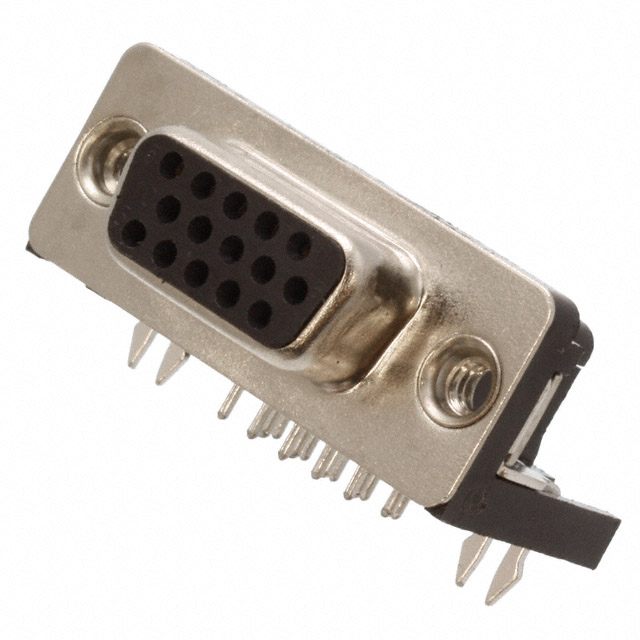

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDS108-PRW1-F15-SN13-1

Obsolete

Sullins Connector Solutions

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDS108-PRW1-F15-SN13-1

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

SDS108 Series

Part	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Material	Contact Form	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Number of Positions	Contact Type	Dielectric Material	Connector Type	Mounting Type	Contact Finish Thickness	Color	Termination	Number of Rows	Voltage Rating	Connector Style	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish
Sullins Connector Solutions SDS108-PRP2-F26-SN13-1	UL94 V-0	8.89 mm	0.35 in	Brass	Stamped	Gold	105 ░C	-55 °C	Housing/Shell (4-40)	26	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Flash	Black	Solder	3	250 VDC	D-Sub High Density	3 A	2	(DA A) High Density
Sullins Connector Solutions SDS108-PRP2-F26-SN63-1	UL94 V-0	8.89 mm	0.35 in	Brass	Stamped	Gold	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	26	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Flash	Black	Solder	3	250 VDC	D-Sub High Density	3 A	2	(DA A) High Density
Sullins Connector Solutions SDS108-PRP2-F44-SN63-1	UL94 V-0	8.89 mm	0.35 in	Brass	Stamped	Gold	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	44	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Flash	Black	Solder	3	250 VDC	D-Sub High Density	3 A			3	B DB
Sullins Connector Solutions SDS108-PRP2-F15-SN13-1	UL94 V-0	8.89 mm	0.35 in	Brass	Stamped	Gold	105 ░C	-55 °C	Housing/Shell (4-40)	15	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Flash	Black	Solder	3	250 VDC	D-Sub High Density	3 A				DE E	1	High Density
Sullins Connector Solutions SDS108-PRW1-F15-SN13-1	UL94 V-0	8.89 mm	0.35 in	Brass	Stamped	Gold	105 ░C	-55 °C	Housing/Shell (4-40)	15	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Flash	Black	Solder	3	250 VDC	D-Sub High Density	3 A				DE E	1	High Density	Nickel Plated Steel
