H3DKH-2618G

Active

Assmann WSW Components

IDC CBL - HHKR26H/AE26G/HHPK26H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR26H/AE26G/HHPK26H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DKH-2618G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket)
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Shielding	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Rows	Pitch - Cable	Pitch - Cable	Color	Contact Finish	Cable Termination	Connector Type	Length [x]	Length [x]	Length	Length	Length
Assmann WSW Components H3DKH-2636M	Unshielded	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	26	2	0.05 "	1.27 mm	Multiple Ribbon	Gold	IDC	Socket to Plug	3 ft	914.4 mm
Assmann WSW Components H3DKH-2618M	Unshielded	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	26	2	0.05 "	1.27 mm	Multiple Ribbon	Gold	IDC	Socket to Plug	1.5 ft	457.2 mm
Assmann WSW Components H3DKH-2618G	Unshielded	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	26	2	0.05 "	1.27 mm		Gold	IDC	Socket to Plug	1.5 ft	457.2 mm
Assmann WSW Components H3DKH-2606M	Unshielded	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	26	2	0.05 "	1.27 mm	Multiple Ribbon	Gold	IDC	Socket to Plug			152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

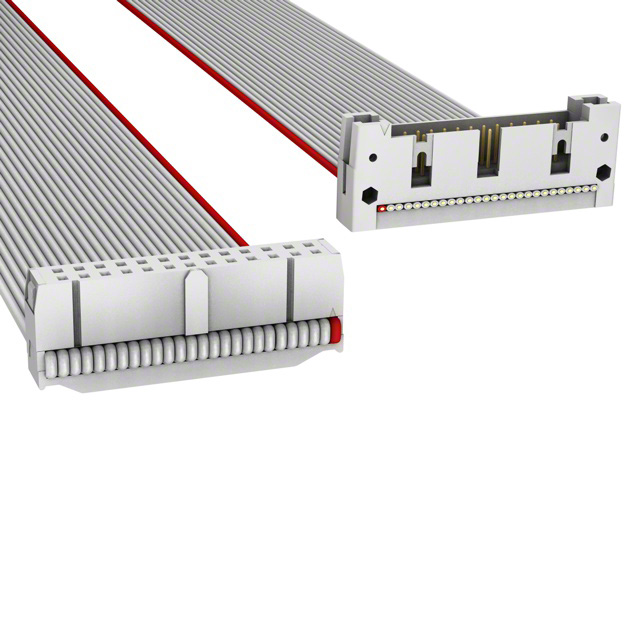

26 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
