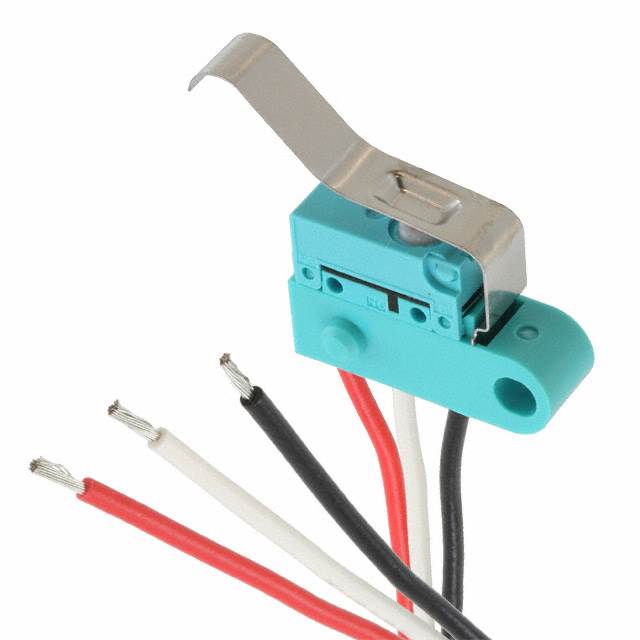

ABJ361841
ObsoletePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ABJ361841
ObsoletePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABJ361841 |
|---|---|
| Actuator Type | Leaf, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 1 mm |
| Differential Travel | 0.04 in |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 100 gf |
| Operating Position | 0.63 in |
| Operating Position | 16 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.098 in |
| Overtravel | 2.5 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ABJ361 Series
Switch SPDT Chassis Mount
