UC-00PFFH-QF7001
ActiveAmphenol LTW

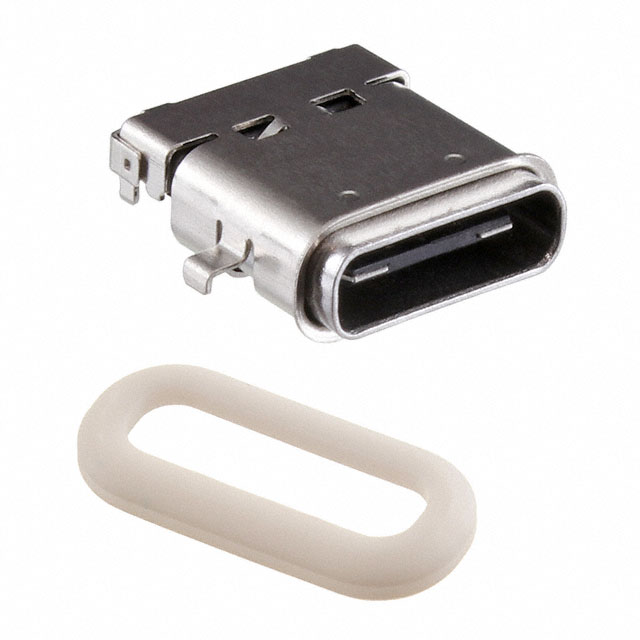

CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UC-00PFFH-QF7001
ActiveAmphenol LTW
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UC-00PFFH-QF7001 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A, 5 A |
| Features | Solder Retention |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
