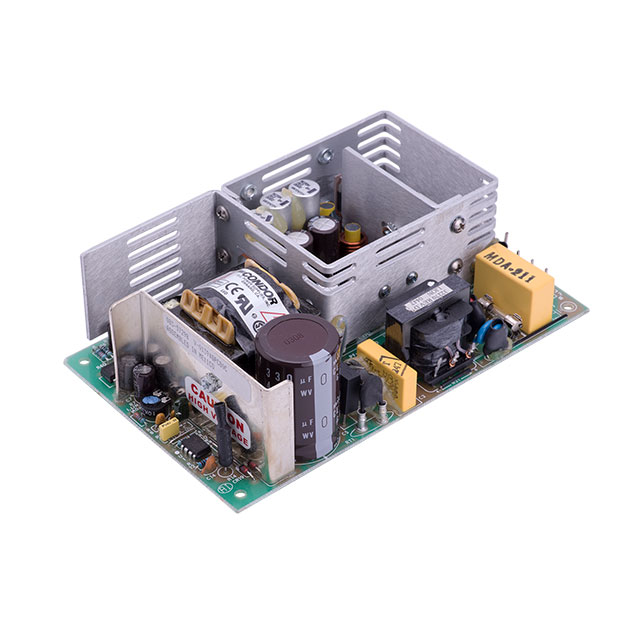

GPC80E

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V +/-15V 80W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V +/-15V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	GPC80E

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	12 A
Current - Output 2	2 A
Current - Output 4	1 A
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	80 W, 110 W
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	108 mm
Size / Dimension [y]	4.25 in
Size / Dimension [z]	1.86 in
Size / Dimension [z]	47.2 mm
Type	Open Frame
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-15 V
Voltage - Output 4	15 V

Part	Current - Output 1	Number of Outputs	Mounting Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output 2	Efficiency	Current - Output 4	Approval Agency	Features	Voltage - Output 4	Voltage - Output 3	Power (Watts)	Minimum Load Required	Applications	Current - Output 2
SL POWER / Advanced Energy GPC80E	12 A	4	Chassis Mount	5 V	7 "	108 mm	1.86 in	177.8 mm	4.25 in	47.2 mm	0 °C	50 °C	Open Frame	24 V	70 %	1 A	CE cURus TUV	Adjustable Output Remote Sense Universal Input	15 V	-15 V	80 W 110 W		ITE (Commercial)	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 4 Output 5V 24V -15V 15V 85 ~ 264 VAC Input
