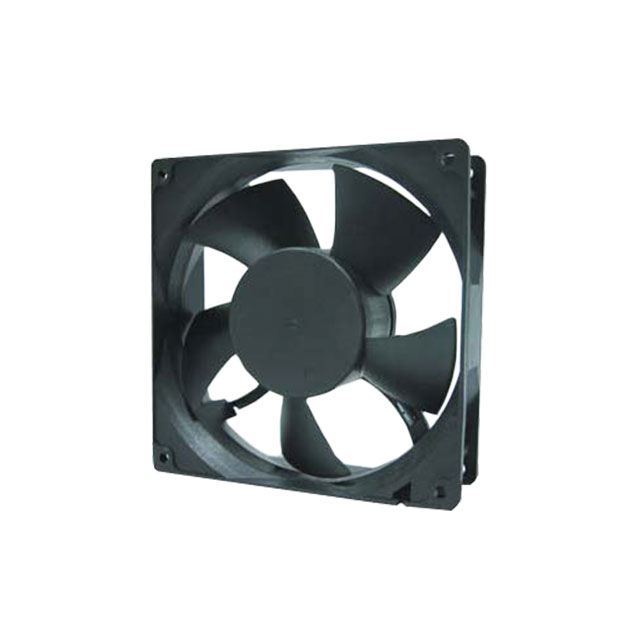

FAD1-12738CBKW12

Active

Qualtek

FAN AXIAL 127X38.5MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 127X38.5MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Approval Agency	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	RPM	Bearing Type	Fan Type	Noise	Termination	Air Flow	Air Flow	Power (Watts)	Current Rating (Amps)	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Material - Frame	Size / Dimension [y]	Size / Dimension [x]
Qualtek FAD1-12738DBJW12	24 VDC	CE cURus TUV	114.6 Pa	0.46 in H2O	21.6 VDC	26.4 VDC	3500 RPM	Ball	Tubeaxial	56 dB	2 Wire Leads	193 CFM	5.4 mł/min	12 W	0.5 A	370.13 g	0.816 lb	38.5 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	127 mm	127 mm
Qualtek FAD1-12738DBKW12	24 VDC	CE cURus TUV	137 Pa	0.55 in H2O	21.6 VDC	26.4 VDC	4100 RPM	Ball	Tubeaxial	62 dB(A)	2 Wire Leads	226 CFM	6.33 m³/min	22.6 W	0.94 A	370.13 g	0.816 lb	38.5 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	127 mm	127 mm
Qualtek FAD1-12738CBKW12	12 VDC	CE cURus TUV	137 Pa	0.55 in H2O	10.8 VDC	13.2 VDC	4100 RPM	Ball	Tubeaxial	62 dB(A)	2 Wire Leads	226 CFM	6.33 m³/min	23.4 W	1.95 A	370.13 g	0.816 lb	38.5 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	127 mm	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 127mm L x 127mm H Ball 226.0 CFM (6.33m³/min) 2 Wire Leads
