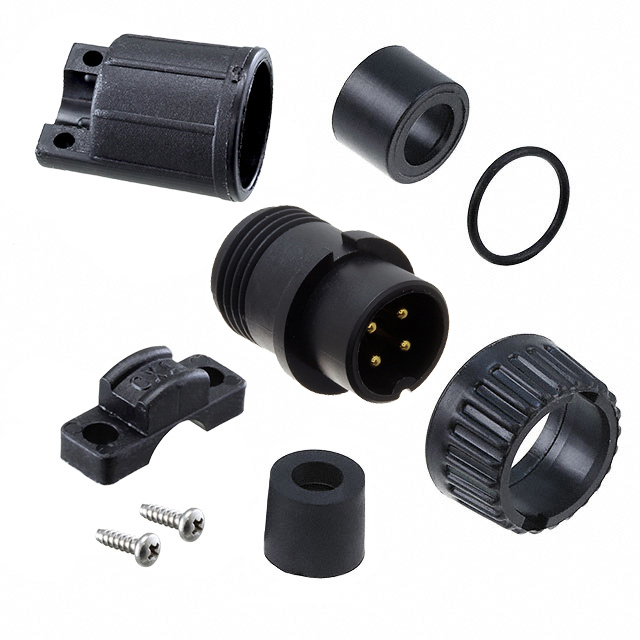

3282-4PG-528

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-4PG-528

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-4PG-528

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	7.37 mm
Cable Opening [Max] [diameter]	0.29 in
Cable Opening [Min] [diameter]	7.11 mm
Cable Opening [Min] [diameter]	0.28 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-4P Series

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Ingress Protection	Primary Material	Orientation	Fastening Type	Contact Finish - Mating	Features	Current Rating (Amps)	Number of Positions	Backshell Material, Plating	Contact Material	Connector Type	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3282-4PG-524	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell Cable Clamp	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3282-4PG-321	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.21 in	5.84 mm	5.33 mm	0.23 in
Conxall/Switchcraft 3282-4PG-328	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3282-4PG-315	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black					0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-4PG-515	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell Cable Clamp	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black					0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-4PG-530	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell Cable Clamp	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.3 in		7.62 mm	0.32 in			8.13 mm
Conxall/Switchcraft 3282-4PG-528	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell Cable Clamp	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3282-4PG-3DC	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black
Conxall/Switchcraft 3282-4PG-324	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3282-4PG-518	Unshielded	-40 °C	115 °C	Free Hanging (In-Line)	600 V	Weathertight	Plastic	Keyed	Bayonet Lock	Gold	Backshell Cable Clamp	5.6 A	4	Nylon Polyamide (PA)	Brass	Male Pins Plug	Black								4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.62
		10	$ 11.19
		25	$ 10.76
		50	$ 10.33
		100	$ 9.75
		300	$ 8.89
		500	$ 8.32
		1000	$ 7.63

Description

General part information

3282-4P Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet
