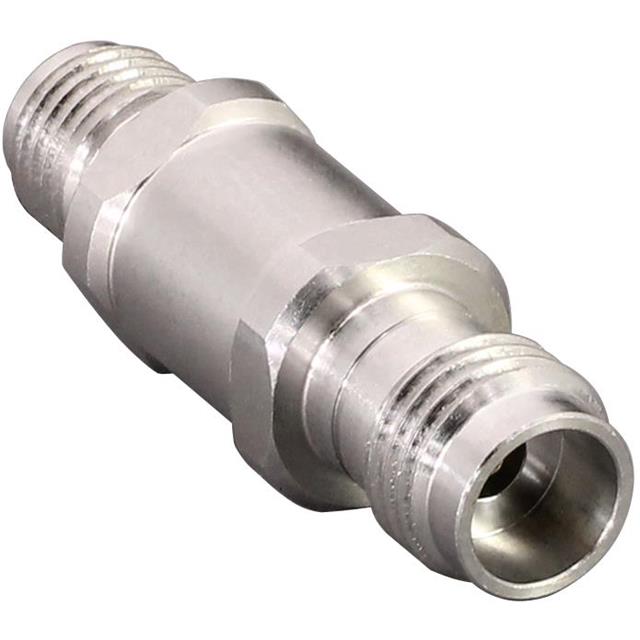

ADP-2.4F-2.92F

Active

TE Connectivity Linx

2.4 MM JACK (FEMALE SOCKET) TO 2

Search across all available documentation for this part.

Active

TE Connectivity Linx

2.4 MM JACK (FEMALE SOCKET) TO 2

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Material	Mating Cycles	Conversion Type	Convert To (Adapter End)	Mounting Type	Impedance	Frequency - Max [Max]	Style	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series [Max]	Adapter Series [Min]	Center Contact Plating	Body Material	Convert From (Adapter End)	Convert To (Adapter End)	Center Gender	Convert From (Adapter End)
TE Connectivity Linx ADP-2.4F-2.92M	Beryllium Copper	500	Same Series	2.92mm (OS-2.9) Plug Male Pin	Free Hanging (In-Line)	50 Ohms	40 GHz	Straight	Plug to Jack	-40 °C	105 ░C	2.92 mm	2.4 mm	Gold	Stainless Steel	2.4 mm
TE Connectivity Linx ADP-2.4F-2.4F	Beryllium Copper	500	Same Series		Free Hanging (In-Line)	50 Ohms	50 GHz	Straight	Jack to Jack	-40 °C	105 ░C	2.4 mm	2.4 mm	Gold	Stainless Steel	2.4 mm	2.4 mm	Female to Female
TE Connectivity Linx ADP-2.4F-2.92F	Beryllium Copper	500	Same Series	OS-2.9 Jack Female Socket	Free Hanging (In-Line)	50 Ohms	40 GHz	Straight	Jack to Jack	-40 °C	105 ░C	2.92 mm	2.4 mm	Gold	Stainless Steel	2.4 mm	2.92 mm	Female to Female
TE Connectivity Linx ADP-2.4M-2.92F	Beryllium Copper	500	Between Series	2.4mm (APC-2.4 OS-50) Plug Male Pin	Free Hanging (In-Line)	50 Ohms	40 GHz	Straight	Plug to Jack	-40 °C	105 ░C	2.92 mm	2.4 mm	Gold	Stainless Steel	2.92 mm			Jack Female Socket OS-2.9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
