B-434-V2590

Obsolete

Aearo Technologies LLC, a 3M company

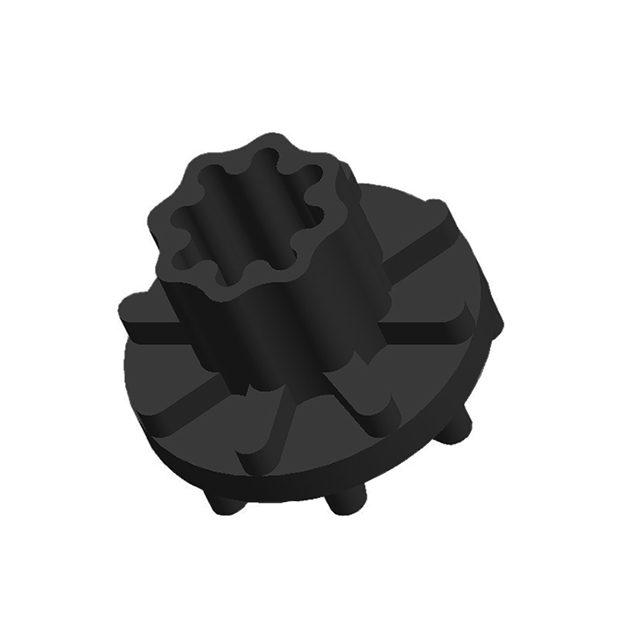

BUSHING 1/2" THERMOPLASTIC

Search across all available documentation for this part.

Obsolete

Aearo Technologies LLC, a 3M company

BUSHING 1/2" THERMOPLASTIC

Technical Specifications

Parameters and characteristics for this part

Part	Thickness - Overall	Thickness - Overall [custom]	Material	Diameter - Inside [diameter]	Diameter - Inside	Diameter - Inside	Length - Below Head [x]	Length - Below Head [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]
Aearo Technologies LLC, a 3M company B-434-V2750	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-V2325	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-1	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-V2525	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-V2575	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-V2599	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm
Aearo Technologies LLC, a 3M company B-434-V2590	14.3 mm	0.563 in	Thermoplastic	0.5 in	0.5 in	12.7 mm	7.95 mm	0.313 in	0.813 "	20.65 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Shoulder Washer 0.563" (14.30mm) Thick Thermoplastic
