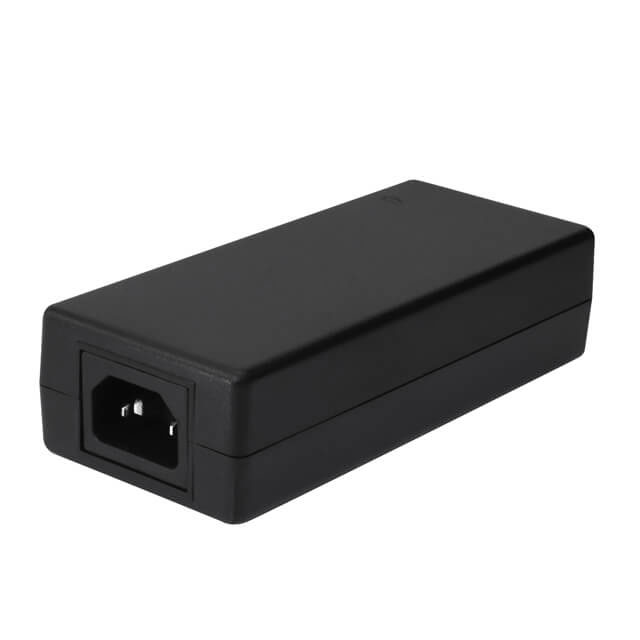

SDM120-12-U-P6

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 12V 110W

Deep-Dive with AI

Search across all available documentation for this part.

SDM120-12-U-P6

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 12V 110W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDM120-12-U-P6

Applications	Medical
Approval Agency	CE, FCC, TUV, cULus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	9.16 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	110 W
Region Utilized	International
Size / Dimension [x]	137 mm
Size / Dimension [x]	5.39 "
Size / Dimension [y]	2.32 in
Size / Dimension [y]	59 mm
Size / Dimension [z]	34 mm
Size / Dimension [z]	1.34 in
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

SDM120 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Applications	Cord Length	Cord Length	Form	Approval Agency	Efficiency	Polarization	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Operating Temperature [Max]	Power (Watts)	Input Type	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	No Load Power Consumption	Standard Number	Region Utilized	Cord Length
CUI Inc. SDM120-48-UD-P5	90 VAC	264 VAC	48 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	2.7 A	40 °C	130 W	Cord	IEC 320-C8	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-24-U-P6	90 VAC	264 VAC	24 V	Medical	1.2 m	47.2 in	Desktop (Class I)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	5 A	40 °C	120 W	Cord	IEC 320-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-12-U	90 VAC	264 VAC	12 V	Medical		1.2 m	Desktop (Class I)	CE cULus FCC TUV	Level VI		2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	9.16 A	40 °C	110 W	Cord	IEC 320-C14				210 mW	60601-1	International	47 "
CUI Inc. SDM120-24-UD-P5	90 VAC	264 VAC	24 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	5 A	40 °C	120 W	Cord	IEC 320-C8	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-24-UD-P6	90 VAC	264 VAC	24 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	5 A	40 °C	120 W	Cord	IEC 320-C8	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-12-UD-P5	90 VAC	264 VAC	12 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	9.16 A	40 °C	110 W	Cord	IEC 320-C8	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-12-U-P5	90 VAC	264 VAC	12 V	Medical	1.2 m	47.2 in	Desktop (Class I)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	9.16 A	40 °C	110 W	Cord	IEC 320-C14	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-12-U-P6	90 VAC	264 VAC	12 V	Medical	1.2 m	47.2 in	Desktop (Class I)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	9.16 A	40 °C	110 W	Cord	IEC 320-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-19-UD-P5	90 VAC	264 VAC	19 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	6.31 A	40 °C	120 W	Cord	IEC 320-C8	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International
CUI Inc. SDM120-12-UD-P6	90 VAC	264 VAC	12 V	Medical	1.2 m	47.2 in	Desktop (Class II)	CE cULus FCC TUV	Level VI	Positive Center	2.32 in	34 mm	1.34 in	137 mm	5.39 "	59 mm	9.16 A	40 °C	110 W	Cord	IEC 320-C8	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	210 mW	60601-1	International

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	144	$ 48.13

Description

General part information

SDM120 Series

12V 110 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
