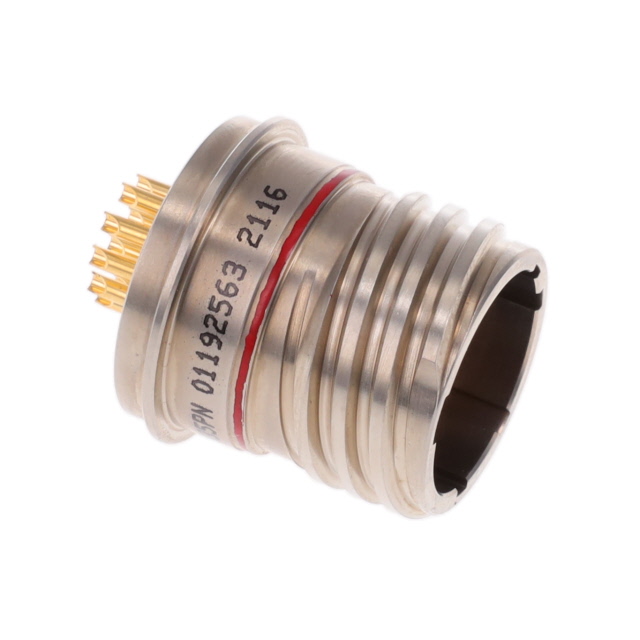

D38999/25NB35PN
ActiveAmphenol Aerospace Operations
HERMETIC CIRCULAR MIL-SPEC CONNE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/25NB35PN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Grade | Military |
| Number of Positions | 13 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Nickel |
| Shell Material | Stainless Steel |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 11 |
| Shell Size, MIL | B |
| Shielding | Unshielded |
| Voltage Rating | 400 VAC, 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 94.72 | |
| 10 | $ 80.52 | |||
| 25 | $ 78.67 | |||
| Bulk | 1 | $ 2964.10 | ||
| Retail Package | 1 | $ 3375.13 | ||
| 2 | $ 3035.02 | |||
| 4 | $ 2729.78 | |||
| 7 | $ 2616.40 | |||
| 10 | $ 2005.91 | |||
Description
General part information
D38999/25NB Series
13 Position Circular Connector Receptacle, Male Pins Solder Cup
