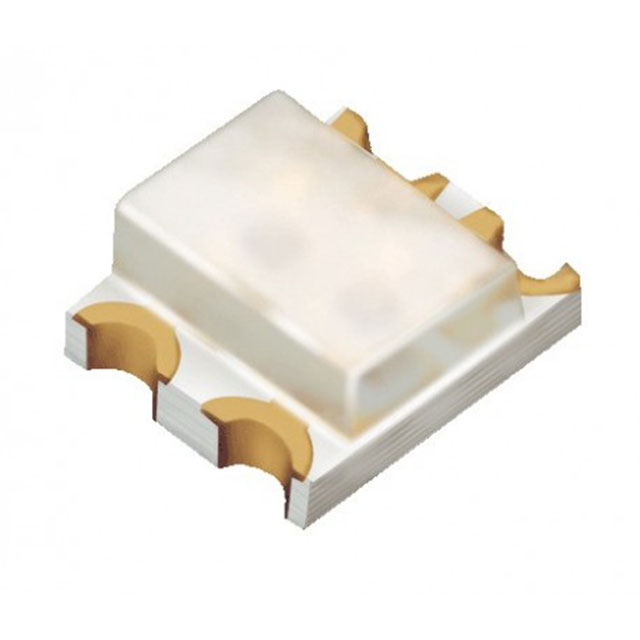

19-223/Y2G6C-A32/2T
ActiveEverlight Electronics Co Ltd
LED YLW/YLW-GRN CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19-223/Y2G6C-A32/2T
ActiveEverlight Electronics Co Ltd
LED YLW/YLW-GRN CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19-223/Y2G6C-A32/2T |
|---|---|
| Color | Yellow, Yellow-Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2 V |
| Wavelength - Dominant | 590 nm, 569 nm |
| Wavelength - Peak [custom] | 591 nm |
| Wavelength - Peak [custom] | 575 nm |
19-223 Series
| Part | Lens Color | Voltage - Forward (Vf) (Typ) | Package / Case | Viewing Angle | Height (Max) [Max] [z] | Lens Transparency | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Supplier Device Package | Wavelength - Dominant | Color | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Configuration | Lens Size [y] | Lens Size [x] | Mounting Type | Lens Style | Wavelength - Peak | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Everlight Electronics Co Ltd | Colorless | 2 V 2 V | 0606 1616 Metric | 130 ° | 0.7 mm | Clear | 20 mA 20 mA | 1.5 mm | 1.6 mm | 4-SMD | 569 nm 590 nm | Yellow Yellow-Green | 591 nm | 575 nm | Independent | 1.2 mm | 1.5 mm | Surface Mount | Rectangle with Flat Top | ||
Everlight Electronics Co Ltd | Yellow | 2.05 V 3.2 V | 0606 1616 Metric | 140 ° | 0.7 mm | Diffused | 5 mA 5 mA | 1.5 mm | 1.6 mm | 0606 | 605 nm | Orange White | Independent | 1.5 mm | 1.2 mm | Surface Mount | Rectangle with Flat Top | 611 nm | 31.5 mcd 78.5 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.20 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 2000 | $ 0.07 | ||
| 6000 | $ 0.06 | |||
| 10000 | $ 0.05 | |||
| 50000 | $ 0.04 | |||
| 100000 | $ 0.04 | |||
Description
General part information
19-223 Series
Yellow, Yellow-Green 590nm Yellow, 569nm Yellow-Green LED Indication - Discrete 2V Yellow, 2V Yellow-Green 0606 (1616 Metric)
