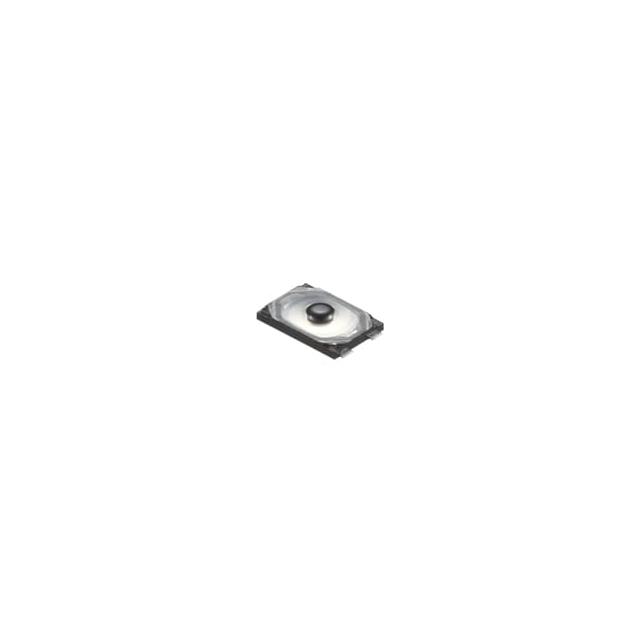

SKSVCAE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKSVCAE010

Actuator Height off PCB, Vertical	0.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Snap Dome
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Operating Force	163 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	3 mm
Outline [y]	1.9 mm
Switch Function	Off-Mom
Switch Travel	0.12 mm
Termination Style	SMD (SMT) Tab

Part	Contact Rating @ Voltage	Ingress Protection	Termination Style	Operating Force	Actuator Orientation	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical	Switch Travel	Circuit	Mounting Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Mechanical Life	Illumination
Alps Alpine SKSVCAE010	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	SMD (SMT) Tab	163 gf	Top Actuated	3 mm	1.9 mm	0.5 mm	0.12 mm	SPST-NO	Surface Mount	Off-Mom	-30 ░C	85 °C	Snap Dome	300000 Cycles	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
