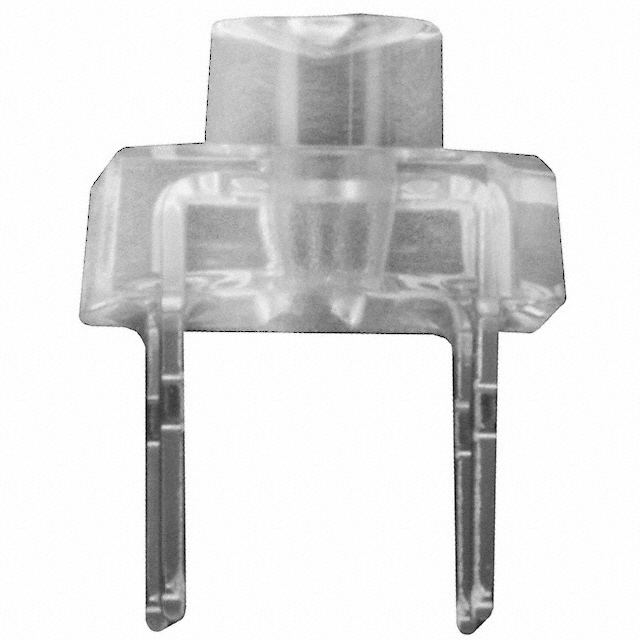

CP42B-AKS-CM0Q0264
ObsoleteCree LED
LED AMBER CLEAR P4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP42B-AKS-CM0Q0264
ObsoleteCree LED
LED AMBER CLEAR P4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP42B-AKS-CM0Q0264 |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 70 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 4 mm |
| Lens Transparency | Clear |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Size / Dimension [x] | 7.6 mm |
| Size / Dimension [y] | 7.6 mm |
| Supplier Device Package | P4 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.5 V |
| Wavelength - Dominant | 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CP42B Series
Amber 591nm LED Indication - Discrete 2.5V 4-DIP (0.200", 5.08mm)
