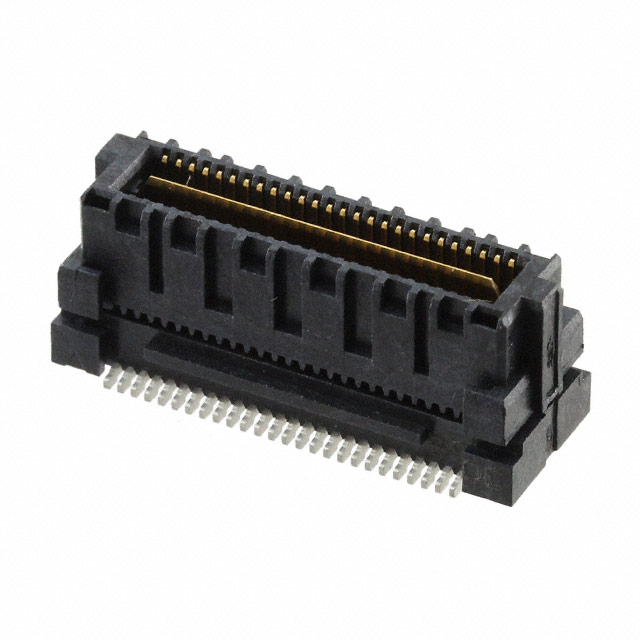

ASP-129637-01
ActiveSamtec Inc.
CONN HDR 52POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-129637-01
ActiveSamtec Inc.
CONN HDR 52POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-129637-01 |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Height Above Board [z] | 8.68 mm |
| Height Above Board [z] | 0.342 in |
| Mounting Type | Surface Mount |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.87 | |
| 10 | $ 16.85 | |||
| 25 | $ 15.25 | |||
| 40 | $ 14.51 | |||
| 80 | $ 13.50 | |||
| 230 | $ 12.14 | |||
| 440 | $ 11.40 | |||
Description
General part information
129637-01 Series
52 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
