P522304-01

Active

Kyocera AVX

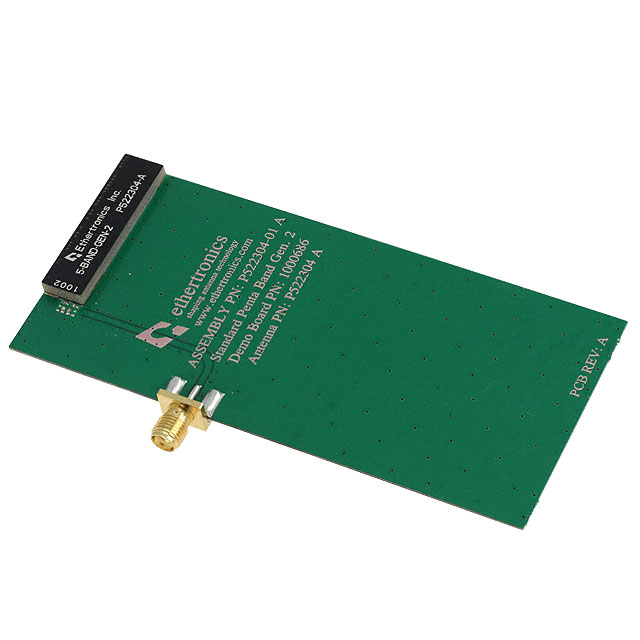

EVAL BOARD FOR P522304

Search across all available documentation for this part.

Active

Kyocera AVX

EVAL BOARD FOR P522304

Technical Specifications

Parameters and characteristics for this part

Specification	P522304-01

For Use With/Related Products	P522304
Frequency [Max]	960 MHz, 2.17 GHz
Frequency [Min]	824 MHz, 1.71 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Power - Max [Max]	Termination	Applications	Frequency (Center/Band)	Number of Bands [custom]	Gain	VSWR	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Antenna Type	Height (Max) [Max]	Height (Max)	RF Family/Standard	Mounting Type	For Use With/Related Products	Type	Frequency [Min]	Frequency [Max]	Supplied Contents
Kyocera AVX P522304	2 W	Solder	CDMA DCS GSM PCS UMTS WCDMA	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5	1.1 dBi 1.2 dBi 1.4 dBi 1.8 dBi 2.5 dBi	2.5	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Wide Band	Chip	0.126 in	3.2 mm	Cellular	Surface Mount
Kyocera AVX P522304-02																P522304	Antenna	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Board(s)
Kyocera AVX P522304-01																P522304	Antenna	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 13.70

General part information

- P522304 Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz Evaluation Board

Technical documentation and resources

No documents available
