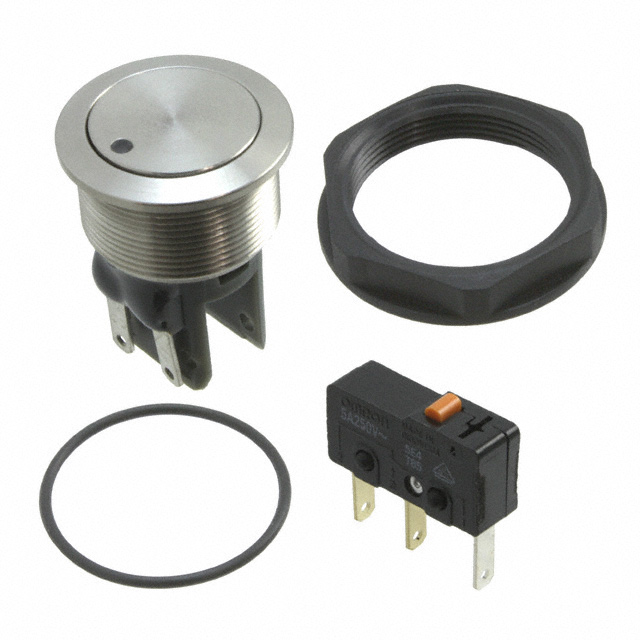

1241.6623.1121000

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6623.1121000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

Part	Actuator Marking	Illumination Voltage (Nominal)	Ingress Protection	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Circuit	Mechanical Life	Color - Actuator/Cap	Switch Function	Mounting Type	Type	Actuator Type	Voltage Rating - AC	Termination Style	Current Rating (Amps)	Electrical Life
SCHURTER Inc. 1241.6623.1122000	No Marking	2.1 VDC	IP40	Green LED	-25 °C	85 °C	19.1 mm	SPDT	1500000 Cycles	Silver	On-Mom	Panel Mount Front	Anti-Vandal Illuminated	Button Flush Round	125 V	Quick Connect - 0.110" (2.8mm)	5 A	200000 Cycles
SCHURTER Inc. 1241.6623.1121000	No Marking	1.9 VDC	IP40	LED Red	-25 °C	85 °C	19.1 mm	SPDT	1500000 Cycles	Silver	On-Mom	Panel Mount Front	Anti-Vandal Illuminated	Button Flush Round	125 V	Quick Connect - 0.110" (2.8mm)	5 A	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
