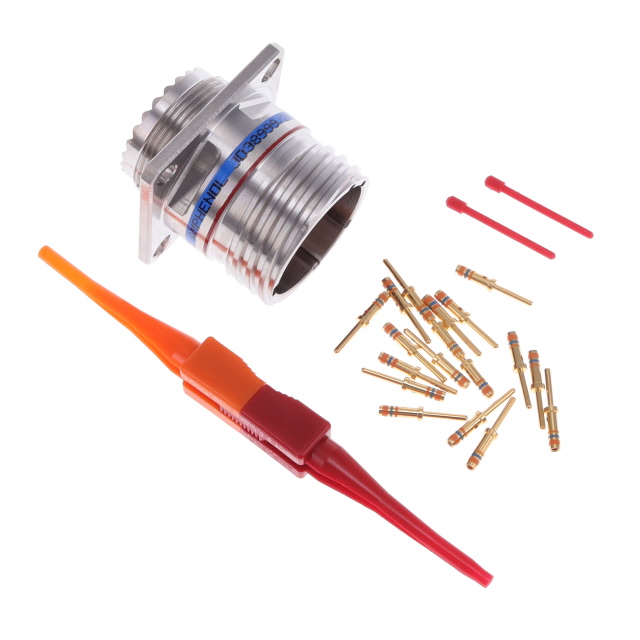

D38999/20KD18PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20KD18PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Features	Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	18
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

Part	Shell Size, MIL	Applications	Current Rating (Amps)	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Qualification	Shielding	Shell Material	Contact Material	Ingress Protection	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Connector Type	Color	Number of Positions	Mounting Feature	Orientation	Primary Material	Termination
Amphenol Aerospace Operations D38999/20KD18PN	D	Aerospace Aviation Marine Military	7.5 A	Military	-65 ░C	200 °C	18	15	MIL-DTL-38999 Series III	Shielded	Stainless Steel	Copper Alloy	Environment Resistant	Gold	1.27 µm	50 µin	Firewall Usage	Male Pins Receptacle	Silver	18	Flange	N	Metal	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Crimp
