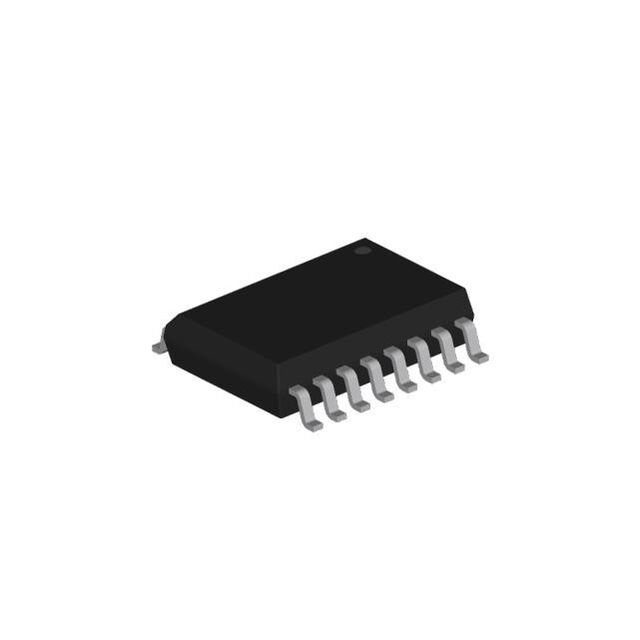

ULN2003AD
ActiveTAEJIN
IC PWR RELAY 7NPN 1:1 SOP-16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ULN2003AD
ActiveTAEJIN
IC PWR RELAY 7NPN 1:1 SOP-16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ULN2003AD |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 500 mA |
| Current - Collector Cutoff (Max) [Max] | 50 µA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 16-SOP |
| Vce Saturation (Max) @ Ib, Ic [Max] | 1.6 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.16 | |
| Tube | 1 | $ 1.66 | ||
| 10 | $ 1.05 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.50 | |||
| 2000 | $ 0.46 | |||
| 5000 | $ 0.42 | |||
| 10000 | $ 0.40 | |||
Description
General part information
ULN2003 Series
Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SOP
Documents
Technical documentation and resources
