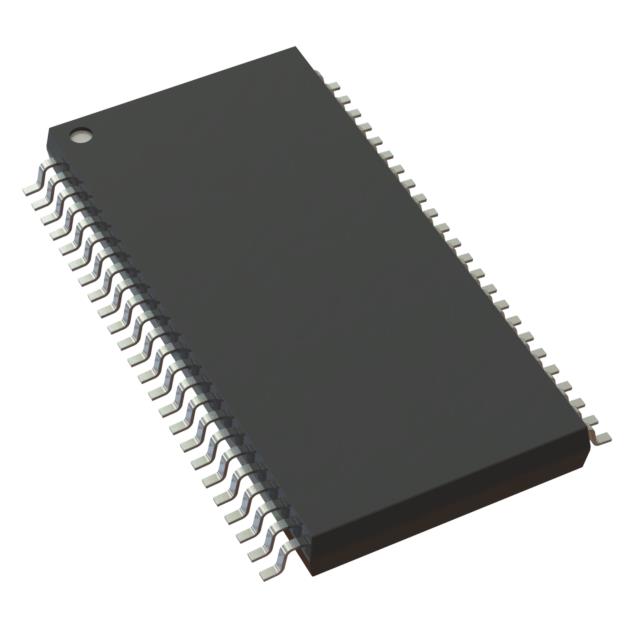

74ABT16245BDGG,112

Obsolete

Freescale Semiconductor - NXP

IC TXRX NON-INVERT 5.5V 48TSSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC TXRX NON-INVERT 5.5V 48TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT16245BDGG,112

Current - Output High, Low [custom]	64 mA
Current - Output High, Low [custom]	32 mA
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	48-TFSOP
Package / Case	0.24 in
Package / Case [custom]	6.1 mm
Supplier Device Package	48-TSSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Number of Elements	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Package / Case	Package / Case	Package / Case [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
Freescale Semiconductor - NXP 74ABT16245BDGG,112	64 mA	32 mA	48-TSSOP	2	Surface Mount	4.5 V	5.5 V	8	48-TFSOP	0.24 in	6.1 mm	85 °C	-40 °C	3-State
Freescale Semiconductor - NXP 74ABT16245BDGG,118	64 mA	32 mA	48-TSSOP	2	Surface Mount	4.5 V	5.5 V	8	48-TFSOP	0.24 in	6.1 mm	85 °C	-40 °C	3-State
Freescale Semiconductor - NXP 74ABT16245BDGG,518	64 mA	32 mA	48-TSSOP	2	Surface Mount	4.5 V	5.5 V	8	48-TFSOP	0.24 in	6.1 mm	85 °C	-40 °C	3-State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Transceiver, Non-Inverting 2 Element 8 Bit per Element 3-State Output 48-TSSOP
