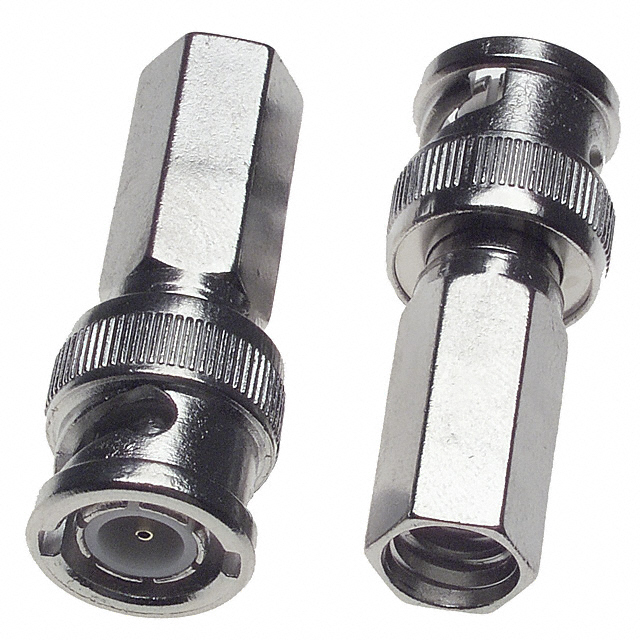

CPFI-UG88-3

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Technical Specifications

Parameters and characteristics for this part

Specification	CPFI-UG88-3

Body Finish	Nickel
Body Material	Zinc
Cable Group	RG-6 Quad Shield, Belden 8218
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Field Installable
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Twist On
Voltage Rating	500 V

Part	Mating Cycles	Cable Group	Housing Color	Connector Type	Body Material	Dielectric Material	Number of Ports	Center Contact Material	Fastening Type	Connector Style	Voltage Rating	Shield Termination	Mounting Type	Frequency - Max [Max]	Center Contact Plating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Contact Termination	Impedance
Cinch Connectivity Solutions AIM-Cambridge CPFI-UG88-3	500	RG-6 Quad Shield Belden 8218	Silver	Male Pin Plug	Zinc	Polytetrafluoroethylene (PTFE)	1	Brass	Bayonet Lock	BNC	500 V	Twist On	Free Hanging (In-Line)	4 GHz	Gold	Field Installable	85 °C	-55 °C	Nickel	Push On	50 Ohms
Cinch Connectivity Solutions AIM-Cambridge CPFIUG885	500	RG-6	Silver	Male Pin Plug	Zinc	Polytetrafluoroethylene (PTFE)	1	Phosphor Bronze	Bayonet Lock	BNC	500 V	Twist On	Free Hanging (In-Line)	4 GHz	Gold	Field Installable	85 °C	-55 °C	Nickel	Push On	50 Ohms
Cinch Connectivity Solutions AIM-Cambridge CPFIUG882	500	62 RG-59	Silver	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	1	Phosphor Bronze	Bayonet Lock	BNC	500 V	Twist On	Free Hanging (In-Line)	4 GHz	Gold	Field Installable	85 °C	-55 °C	Nickel	Push On	50 Ohms
Cinch Connectivity Solutions AIM-Cambridge CPFI-UG88-10	500	62 Plenum RG-59	Silver	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	1	Phosphor Bronze	Bayonet Lock	BNC	500 V	Twist On	Free Hanging (In-Line)	4 GHz	Gold	Field Installable	85 °C	-55 °C	Nickel	Push On	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.19

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
