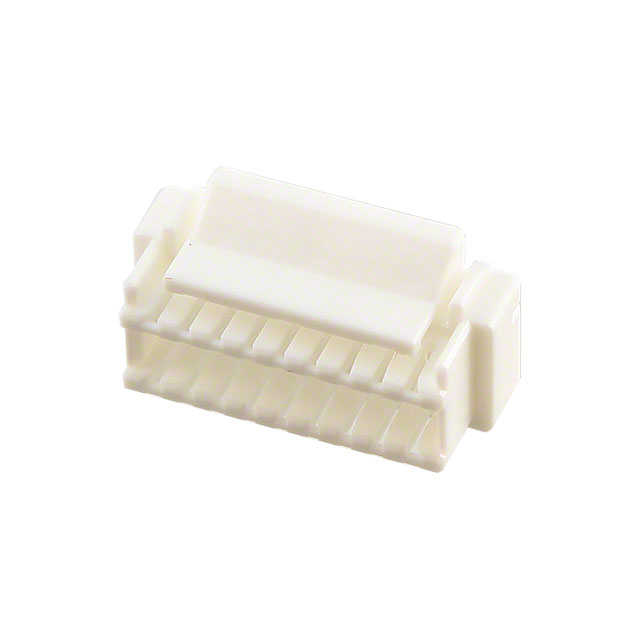

ZPDR-18V-S

Active

JST Sales America Inc.

CONN RCPT HSG 18POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

ZPDR-18V-S

Active

JST Sales America Inc.

CONN RCPT HSG 18POS 1.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZPDR-18V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	1.5 mm
Pitch [x]	0.059 in

ZPDR Series

Part	Contact Termination	Contact Type	Note	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type
JST Sales America Inc. ZPDR-20V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	20	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-10V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	10	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-24V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	24	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-22V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	22 positions	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-30V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	30	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-14V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	14	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-18V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	18	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-28V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	28	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-26V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	26	Natural	-25 °C	85 °C	Latch Lock	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.43
		100	$ 0.35
		1000	$ 0.25
		5000	$ 0.22
		10000	$ 0.21

Description

General part information

ZPDR Series

18 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
