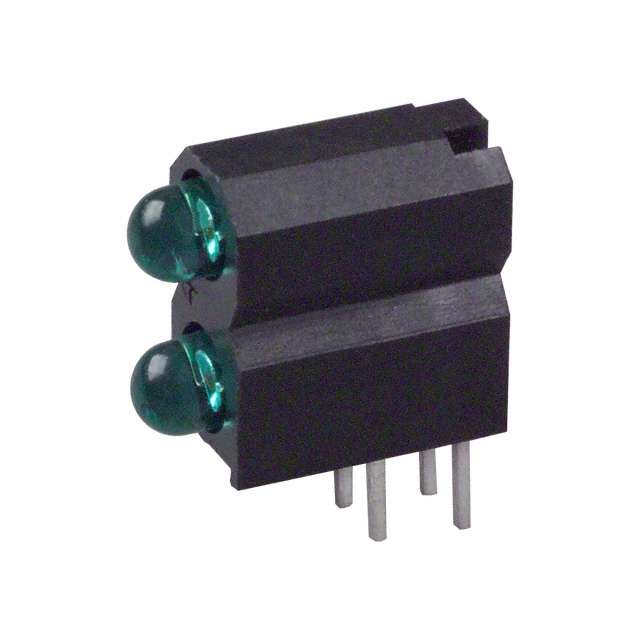

5532222300F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN RA

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Lens Type	Configuration	Voltage Rating	Lens Size [diameter]	Millicandela Rating	Lens Style	Current	Viewing Angle	Color	Wavelength - Peak	Configuration [x]	Configuration [y]	Configuration [z]	Lens Size	Lens Size
DIALIGHT 5532222100F	Through Hole Right Angle	Tinted	2 High	2.1 V	3 mm	50 mcd	Round with Domed Top	30 mA	45 °	Green (x 2)	565 nm
DIALIGHT 5532222103F	Through Hole Right Angle	Tinted		2.1 V	3 mm	50 mcd	Round with Domed Top		45 °	Green (x 6)	565 nm	3	2
DIALIGHT 5532222306F	Through Hole Right Angle	Tinted		2.1 V	3 mm	50 mcd	Round with Domed Top		45 °	Green (x 12)	565 nm		6	2
DIALIGHT 5532222400F	Through Hole Right Angle	Tinted	2 High	2.1 V	3 mm	50 mcd	Round with Domed Top		45 °	Green (x 2)	565 nm
DIALIGHT 5532222803F	Through Hole Right Angle				3 mm		Round with Domed Top
DIALIGHT 5532222F	Through Hole Right Angle	Tinted	2 High	2.1 V		50 mcd			45 °	Green (x 2)	565 nm
DIALIGHT 5532222300F	Through Hole Right Angle	Tinted	2 High	2.1 V		50 mcd	Round with Domed Top		45 °	Green (x 2)	565 nm				3 mm	T-1
DIALIGHT 5532222805F	Through Hole Right Angle
DIALIGHT 5532222004F	Through Hole Right Angle	Tinted		2.1 V	3 mm	50 mcd	Round with Domed Top	10 mA	45 °	Green (x 8)	565 nm		4	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	700	$ 1.07

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
